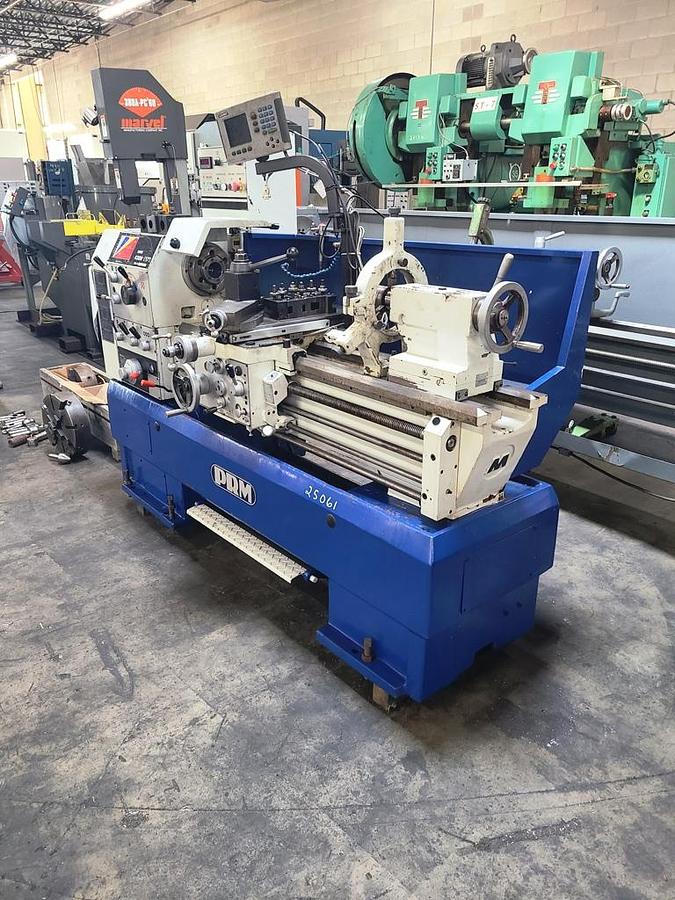

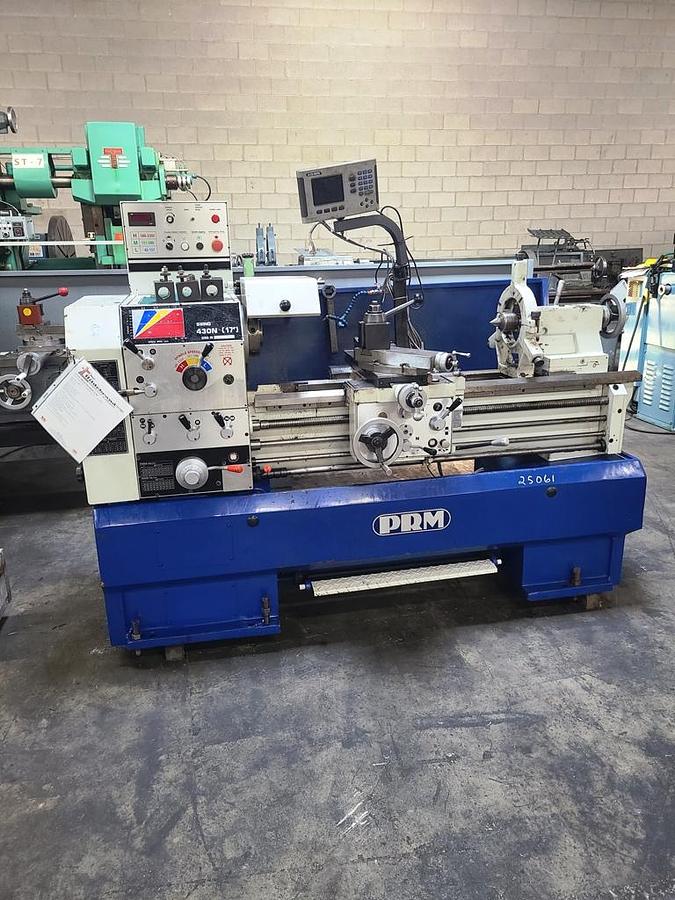

17" X 40" PRM GAP BED ENGINE LATHE

17" X 40" PRM GAP BED ENGINE LATHE

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $10,200.00

HMC Stock # 25061-C

Serial No.: 12127

Model: 430N

Year: Unknown

Swing Over Cross Slide: 9-3/4"

Swing Over Bed Ways: 17"

Spindle Nose: D6 Camlock

Spindle Thru Hole: 2-5/16"

Swing in Gap: 26"

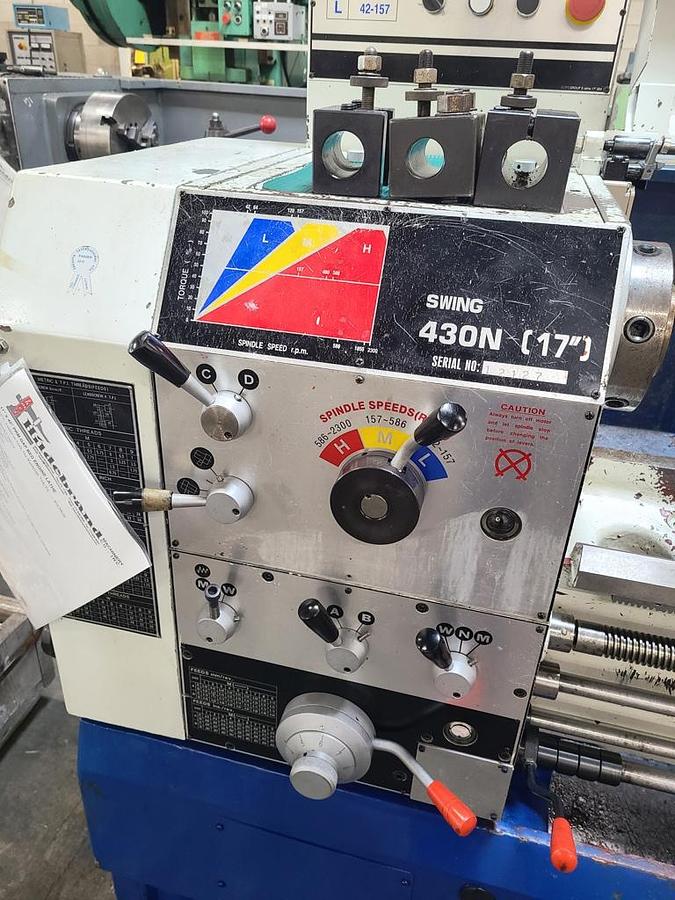

Variable Spindle Speeds in 3 Gear Ranges: 42 to 157; 157 to 586; 586 to 2300 RPM

Tailstock Quill Taper: #4 Morse

EQUIPPED WITH:

2 Axis Acu-Rite Digital Readout System

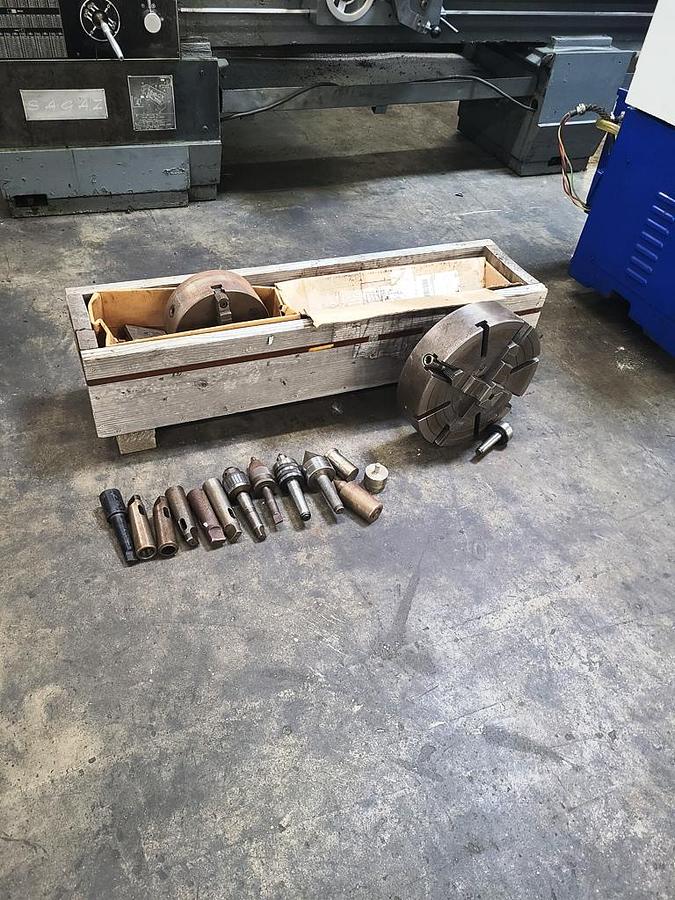

15" 4 Jaw Chuck

10" 3 Jaw Chuck with D6 Camlock Mount

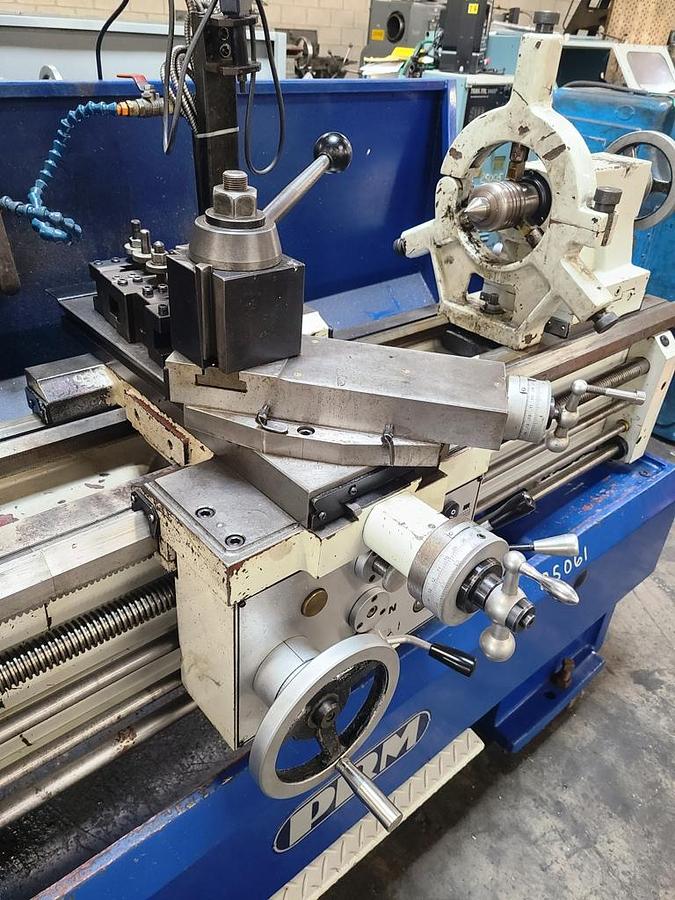

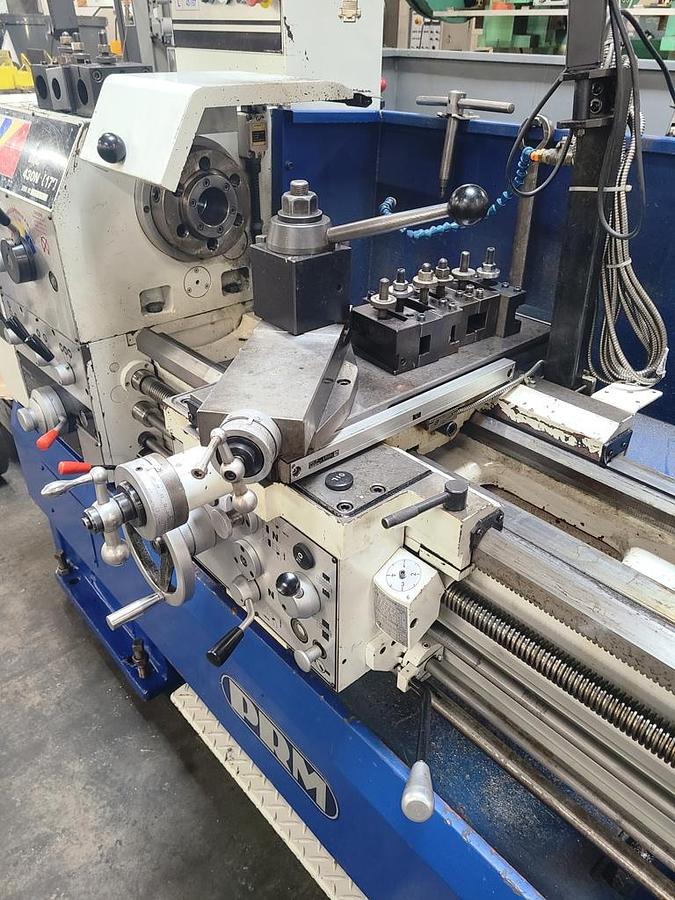

Aloris Tool Post and Assorted Holders

Inch – Metric Dials on Cross Slide and Top Compound

Thread Chasing Dial

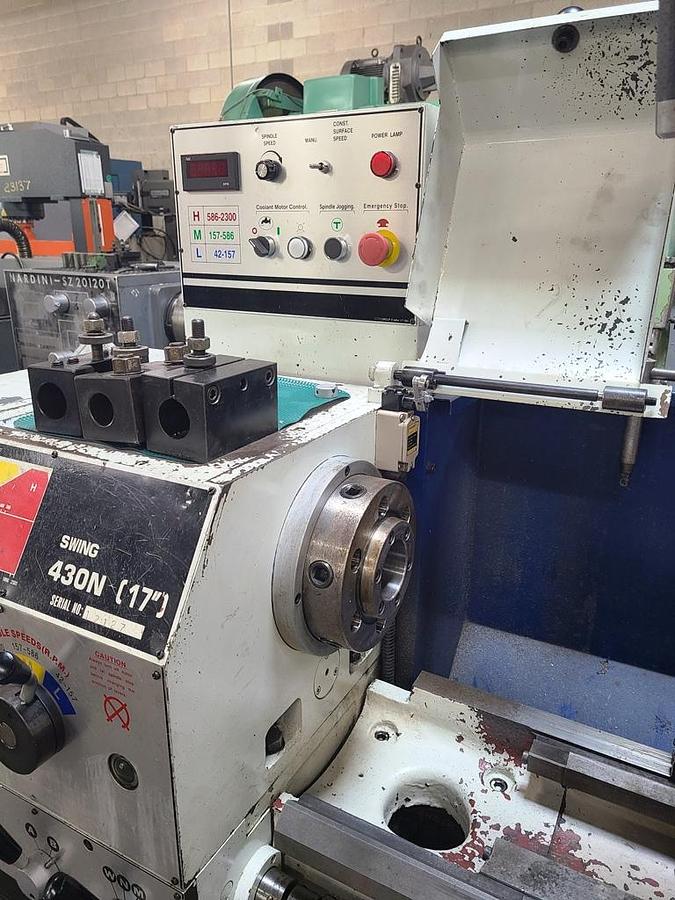

Digital Display of Spindle RPM

Inch & Metric Feeds and Treads (see pictures of charts)

Foot Pedal Spindle Brake

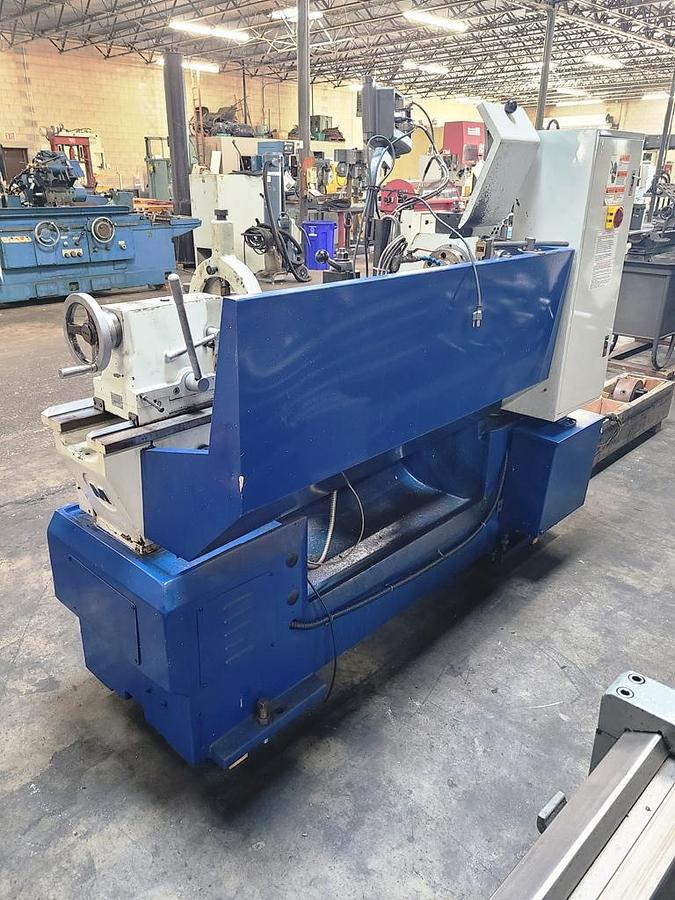

Full Length Rear Splash Guard

Hardened Ground Bed Ways

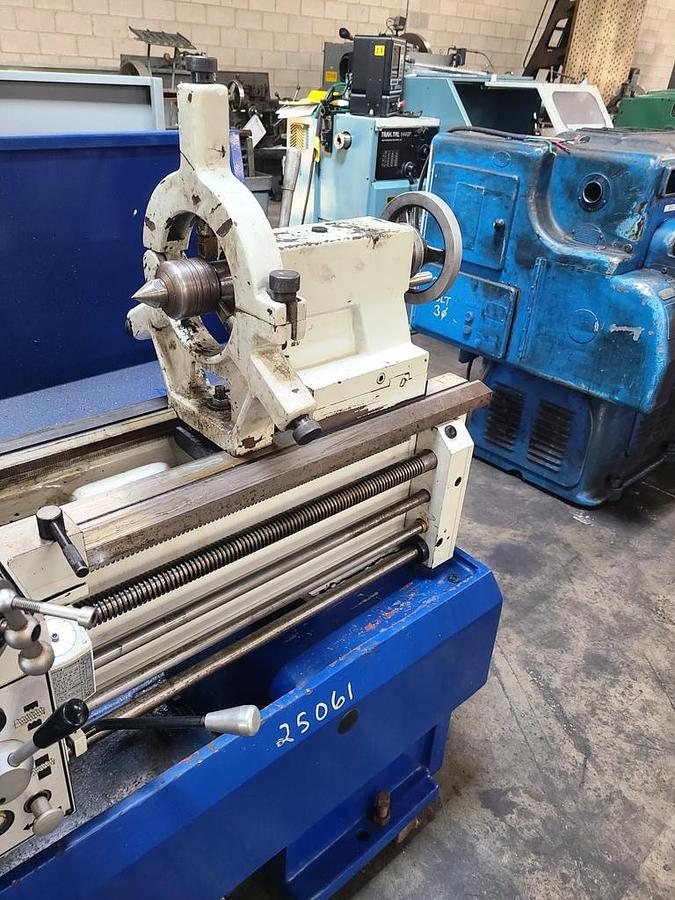

(1) Steady Rest

7-1/2 HP Main Motor

Machine is Wired for 3 Phase, 60Hz, 220 / 440 Volts

Presently Wired for 220 Volt Operation

Overall Size: 88" LR x 39" FB x 63" High x 3,900 Lbs.
