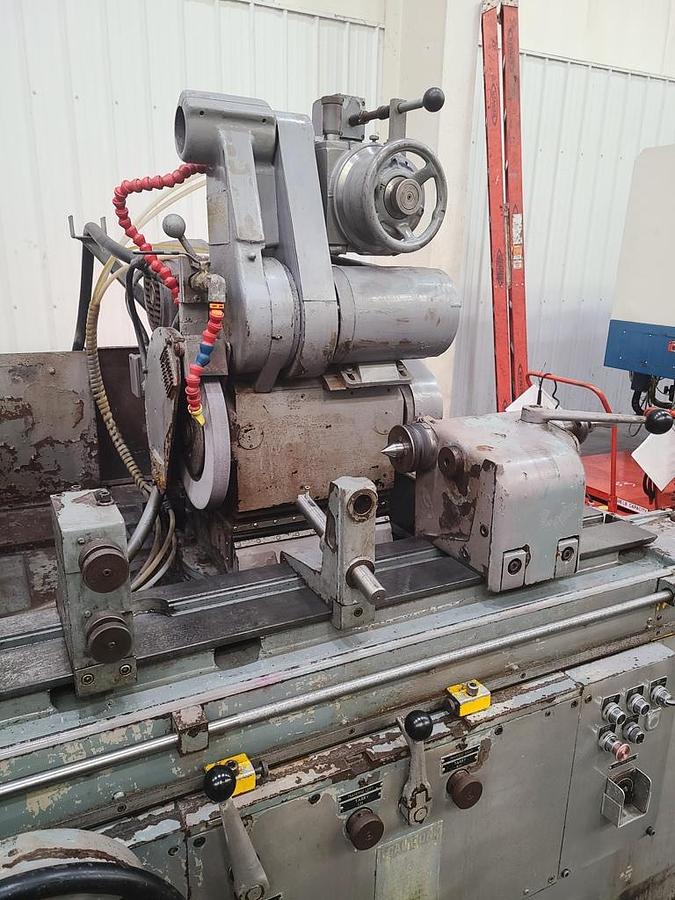

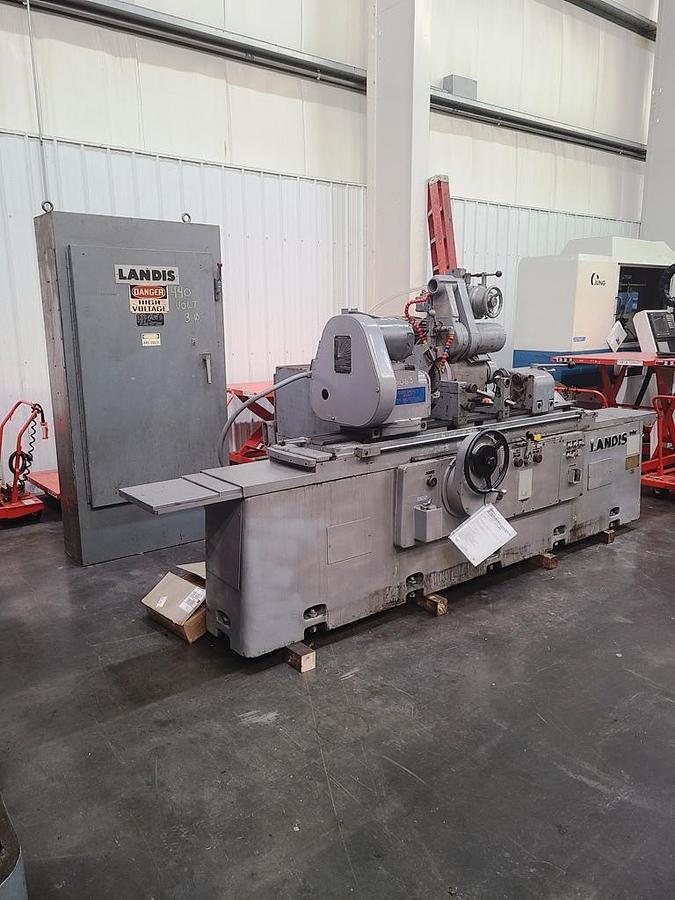

14" X 48" LANDIS UNIVERSAL CYLINDRICAL GRINDER

14" X 48" LANDIS UNIVERSAL CYLINDRICAL GRINDER

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $ POR

HMC Stock # 25063-C

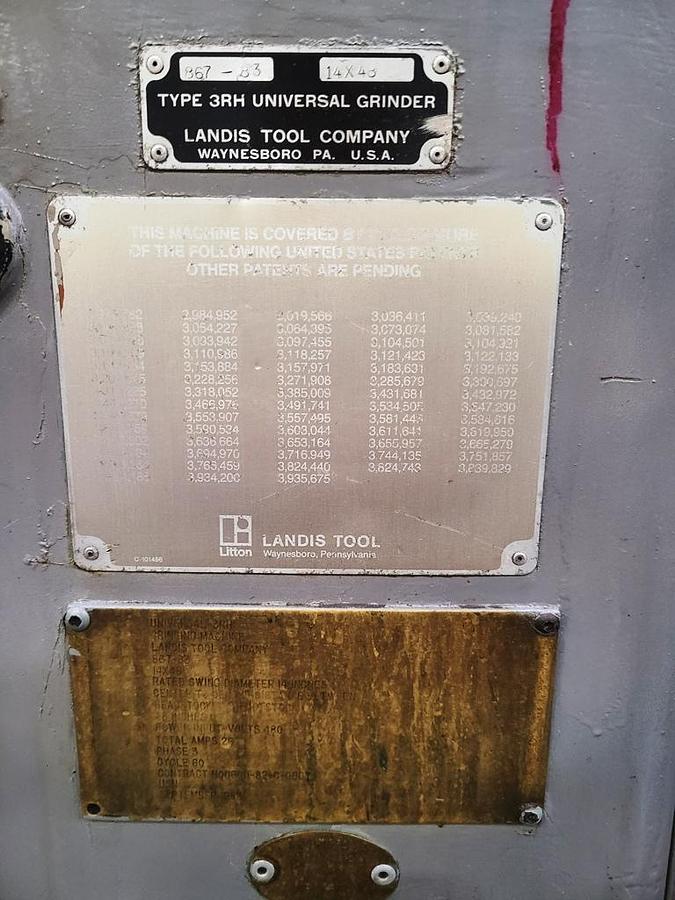

Serial No.: 867-83

Model: 3RH

Year: 1985

Swing: 14"

Center Distance: 48"

Max. Diameter with Full Size Standard Wheel: 14-31/32"

Min. Diameter Wheel to Grind Zero Diameter Work on Centers: 9-1/4"

Floor to Work Centerline: 43"

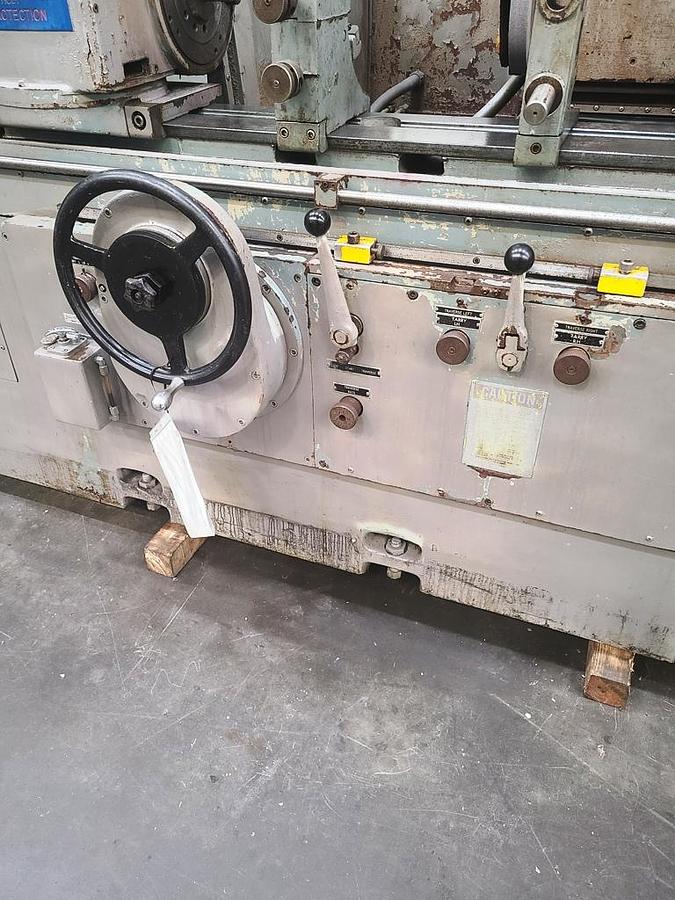

WORK CARRIAGE:

Traverse Speed: 2 to 240 IPM

Traverse Per Turn of Handwheel:

  Slow: .100"

  Fast: .750"

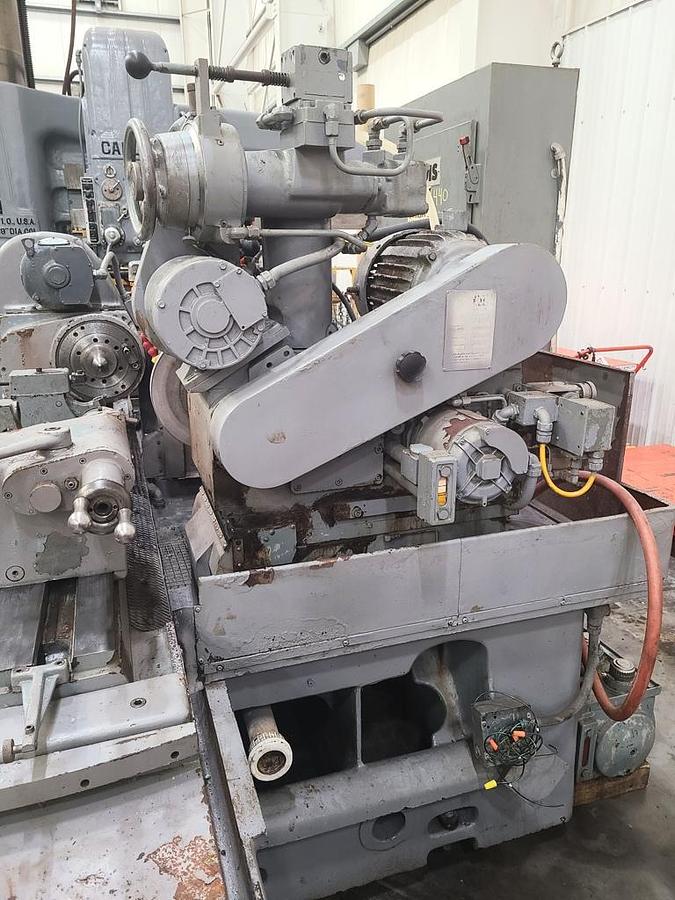

WHEELHEAD AND WHEELFEED:

Standard Wheel Size: 14" x 1-1/2" x 5"

Grinding Wheelhead Swivel Range:

  Upper: 180 Degrees

  Lower: 60 Degrees CW to 30 Degrees CCW

Grinding Wheel Speeds: 1720 to 2185 RPM

Automatic Infeed at Table Reversal (On Diameter): .0003" to .004"

Max. Distance Wheel Centerline to Work Centerline: 17"

Min. Distance Wheel Centerline to Work Centerline: 3"

Work Diameter Reduction Per Revolution of Handwheel: .100"

Work Diameter Reduction Per Revolution of Fine Feed Knob: .005"

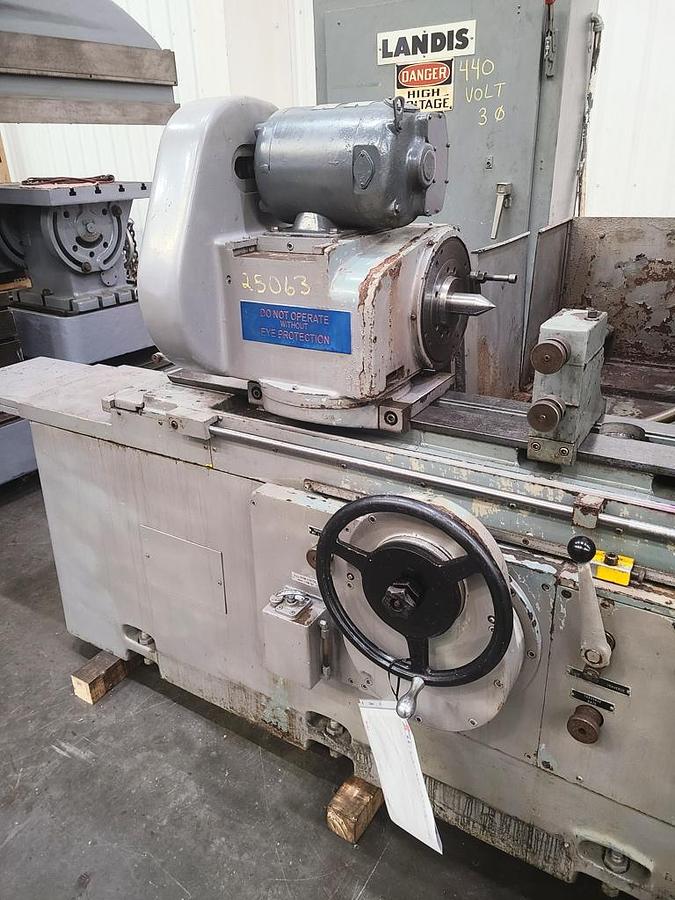

Headstock Work Center: #14 Jarno

Tailstock Work Center: #10 Jarno

Headstock Work Speeds, Infinitely Variable:

  Low Range: 25 to 125

  High Range: 100 to 500

Diameter of Hole Through Headstock: 1-7/16"

Headstock Spindle Nose: 6A-2

Headstock Swivel Range: 120 Degrees

Swivel Table Graduated (Inches Per Foot): 4-3/4"

Swivel Table Graduated (Degrees Included Angle): 23 Degrees

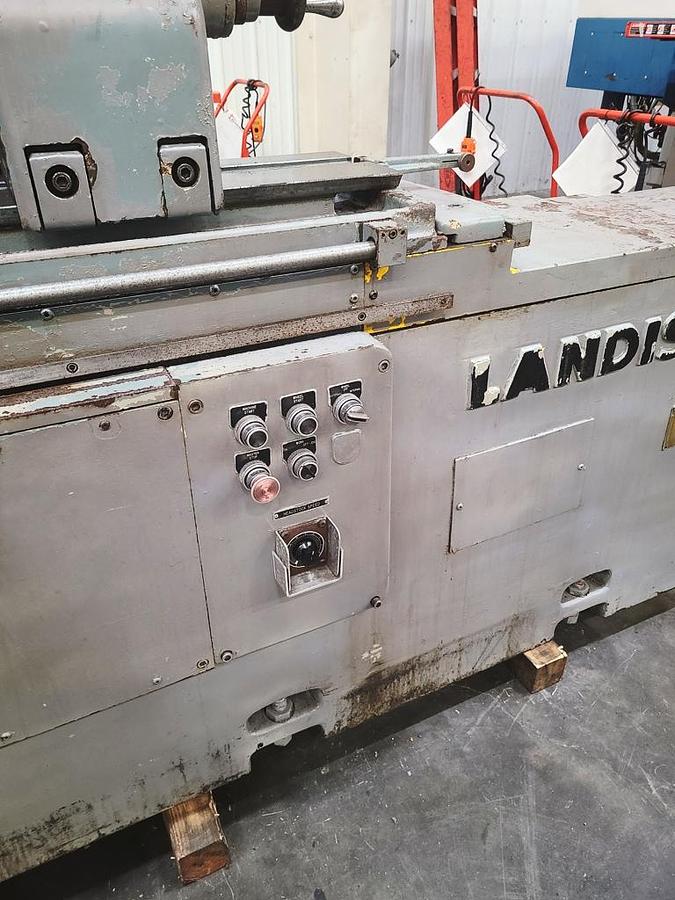

EQUIPPED WITH:

Traverse Feed Selector

Wheelhead Ways Lubrication Pump

Left/Right Tarry

Traverse Rate Knob

Headstock Speed Knob

Rapid Power Wheelhead Positioning Attachment

Diamond Wheel Dresser Holder with (1) Diamond

Center Rest (Maximum Capacity: 7")

(2) Grinding Wheel Hubs

Swing Down Internal Grinding Attachment

Sheet Metal Coolant Splash Guards

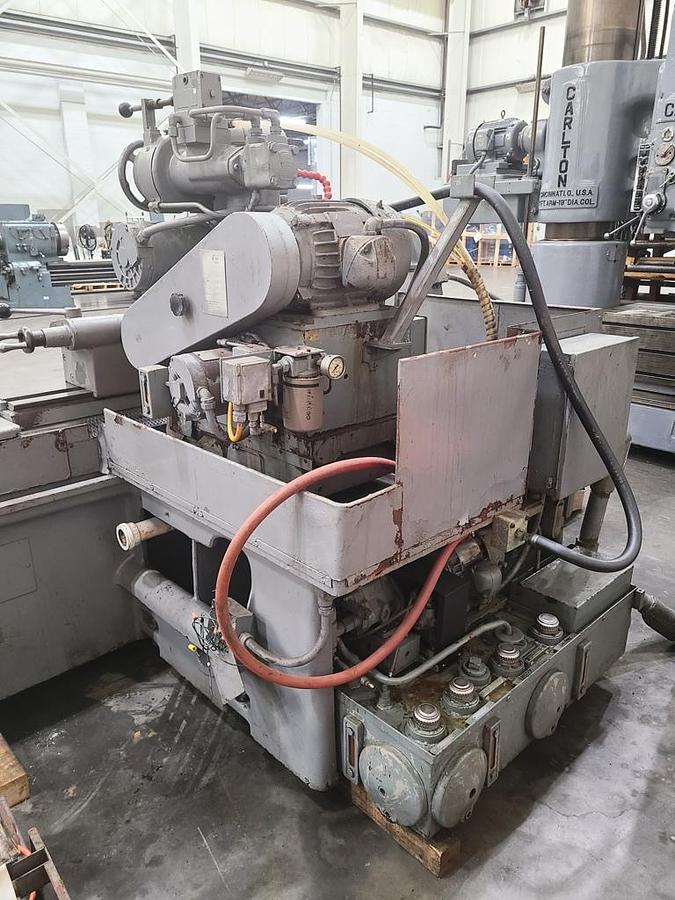

Flood Coolant

Separate Coolant Tank with Paper Drag Out

5 HP Grinding Wheel Motor

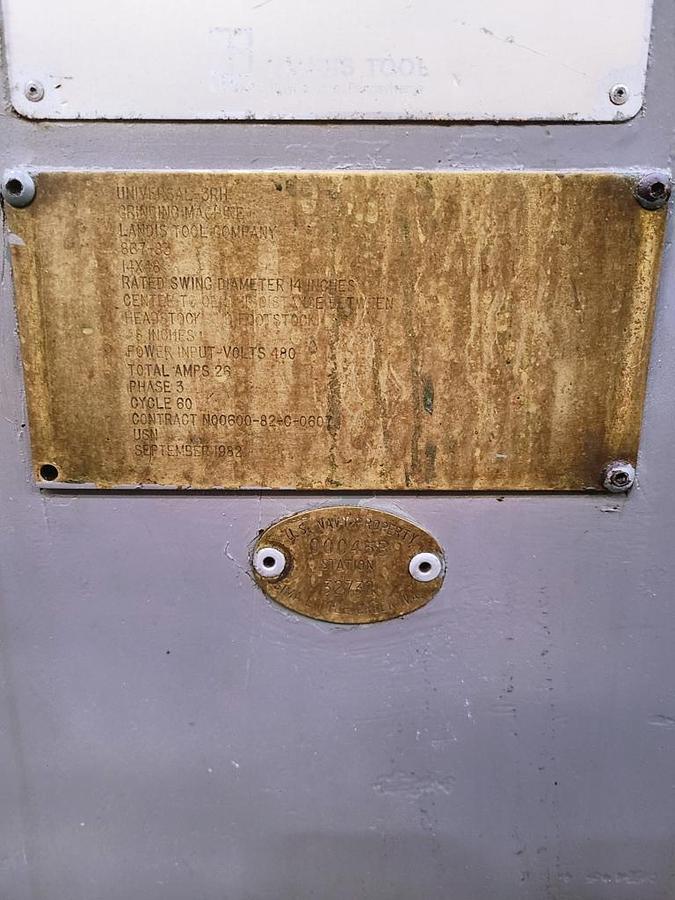

Machine Wired for 3 Phase, 60 Cycle, 440 Volts

DIMENSIONS:

Overall Size Machine: 168" L-R x 84" F-B x 72" H x 11,000 Lbs.

Coolant System: 62" L-R x 41" F-B x 30" H

Box of Tooling: 48" L-R x 40" F-B x 17" H
