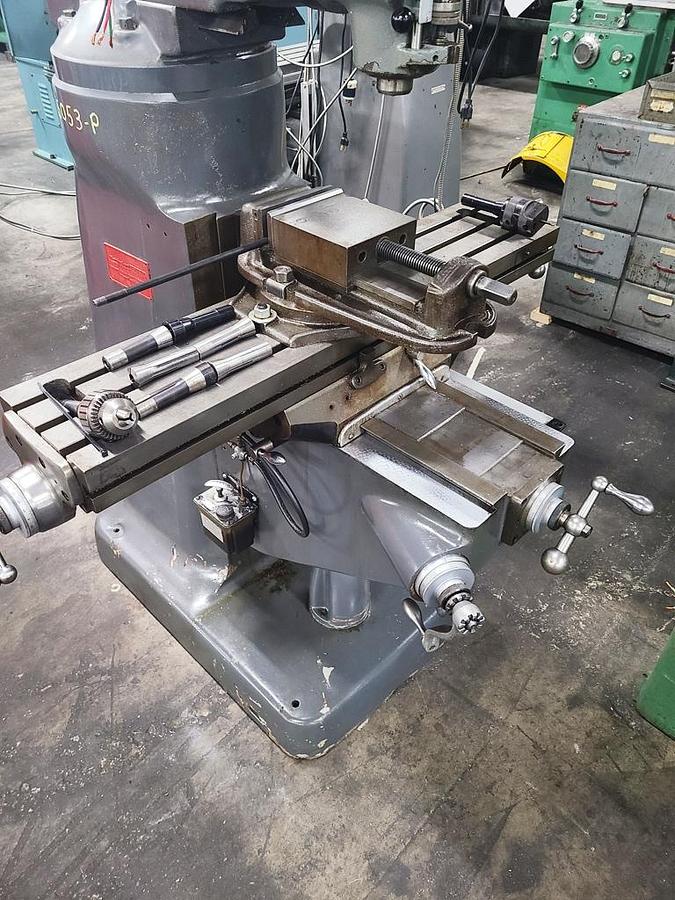

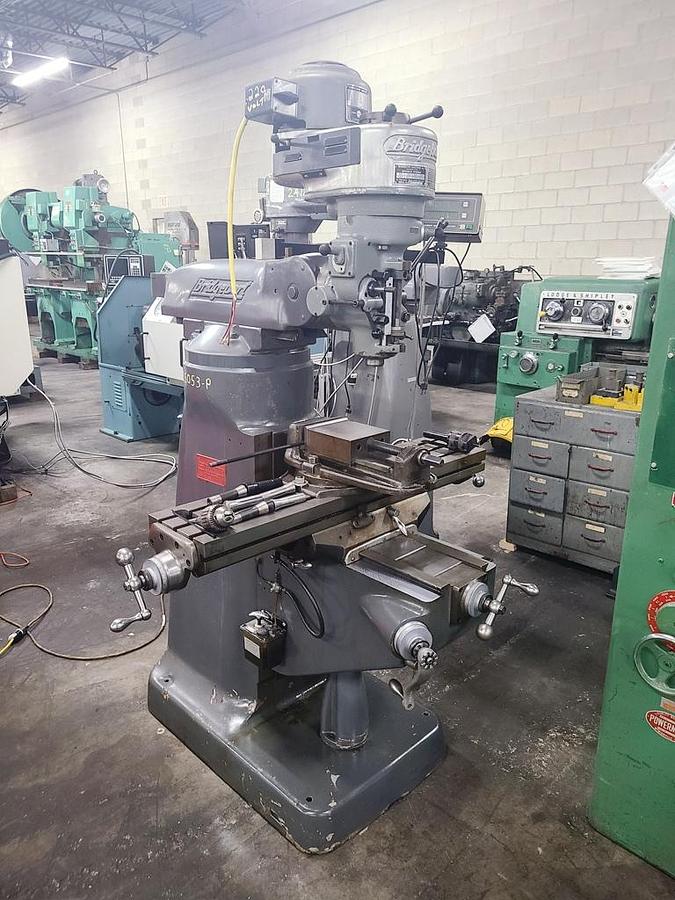

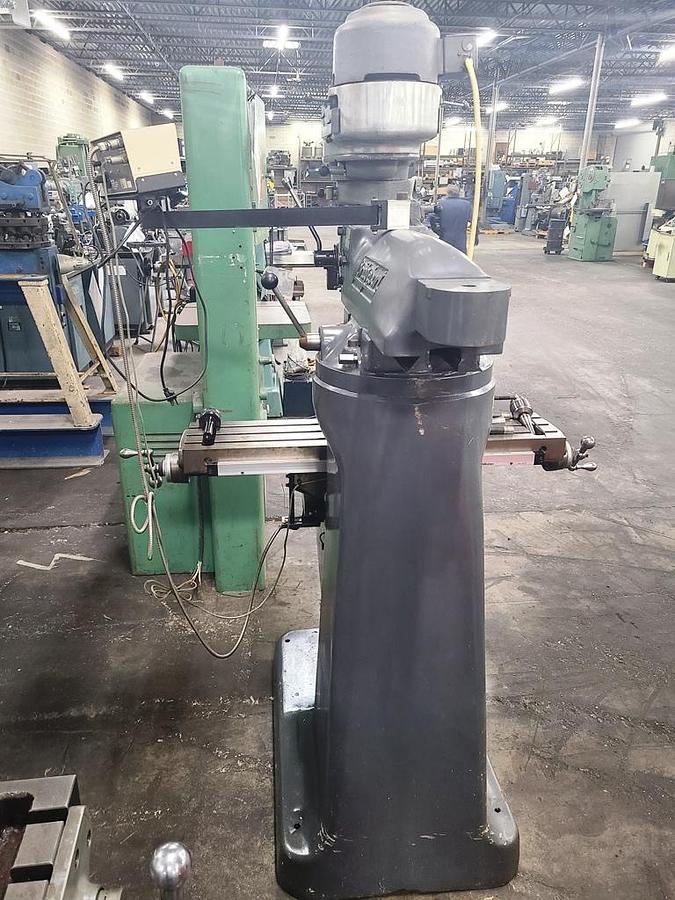

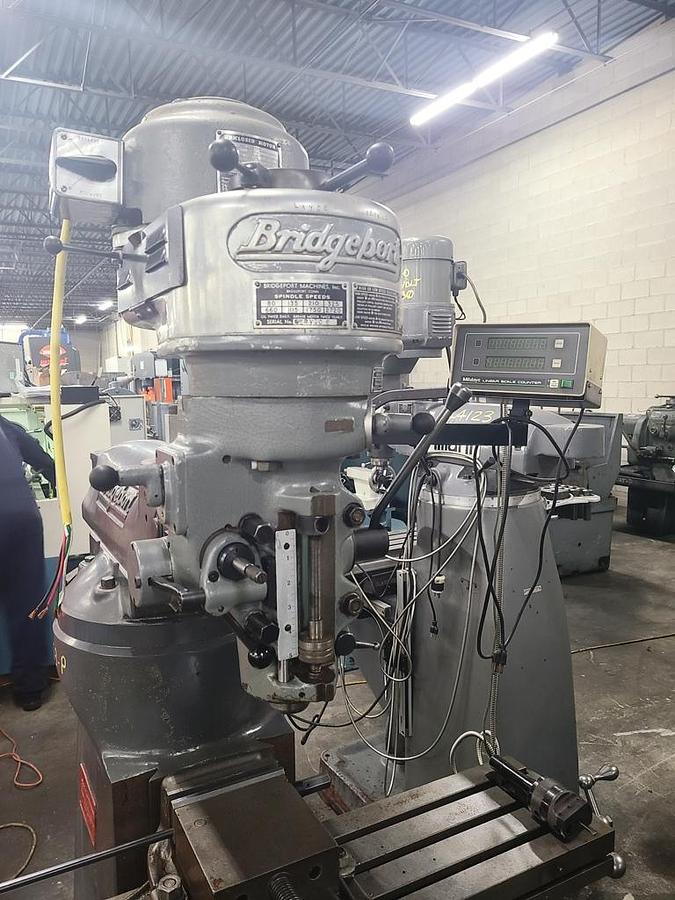

BRIDGEPORT VERTICAL MILL

BRIDGEPORT VERTICAL MILL

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $3,000.00

HMC Stock # 25053-P

Serial No.: 197517

Model: J Head, Step Pulley

(8) Spindle Speeds: 80 to 2720 RPM Via Manual V-Belt Change

Quill Travel: 5" Manually or Powered

Table Size: 9" x 42" with (3) T-Slots

Spindle Taper: R8

Table Travel: 28" X Axis, 12" Y Axis, 16" Z Axis

Head Tilts 45 Degrees Front & Back

Read Rotates 360 Degrees

(3) Power Quill Feeds: .0015", .003" & .006" Per Revolution

EQUIPPED WITH:

Chrome Saddle Ways

Mitutoyo Digital Read Out

6" Bridgeport Machine Vise

Manual Tool Draw Bar

One Shot Lubrication System

1 HP Motor, Wired for 3 Phase, 60 Cycle, 220 Volts

Overall Size: 60" L-R x 50" F-B x 78" H x 2,200 Lb.
