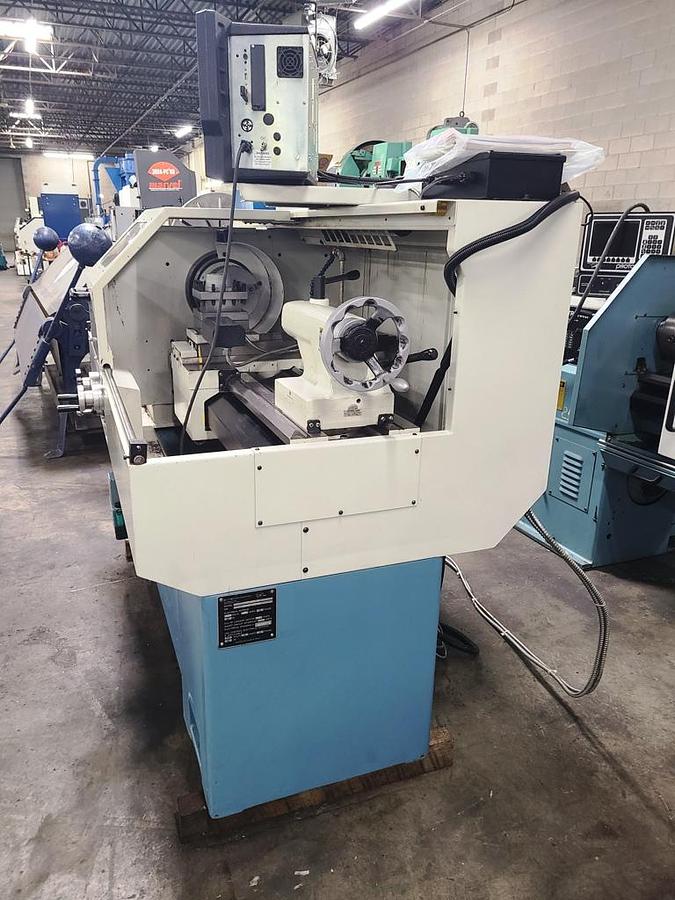

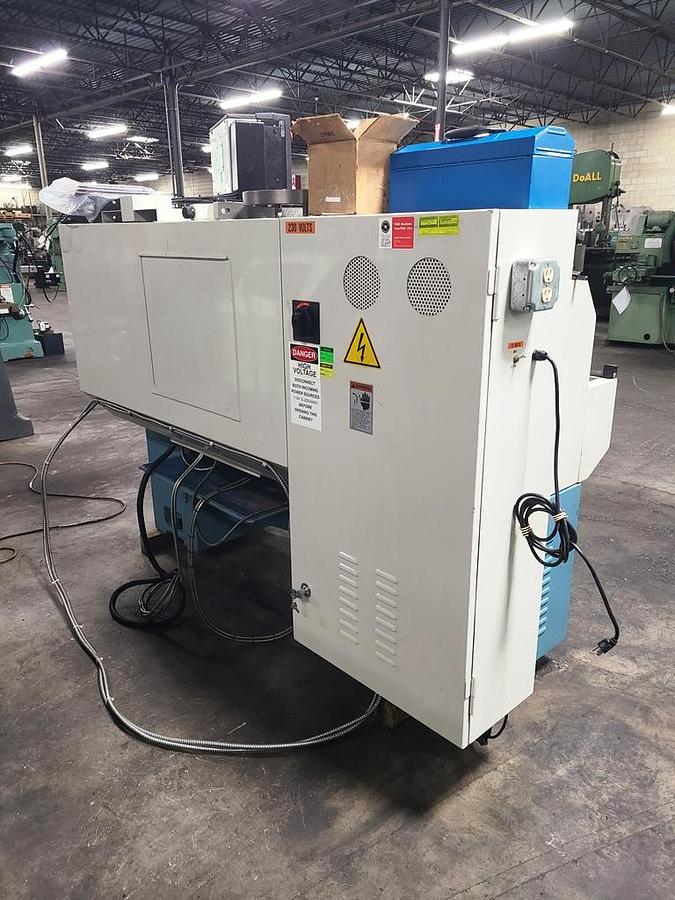

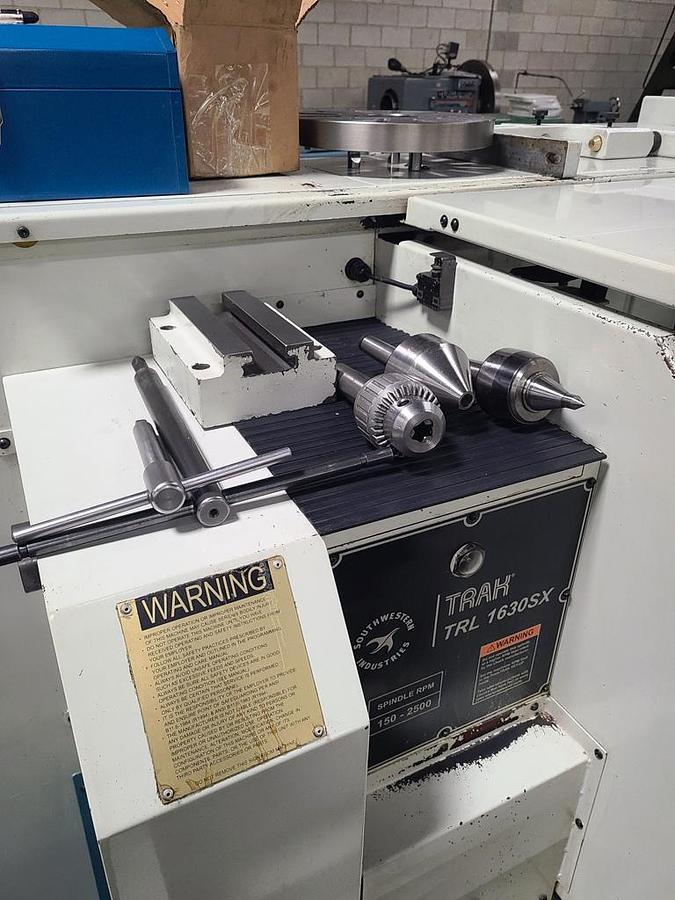

SOUTHWESTERN INDUSTRIES TRAK 1630SX FLAT BED CNC LATHE

SOUTHWESTERN INDUSTRIES TRAK 1630SX FLAT BED CNC LATHE

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $26,500.00

HMC Stock # 25076-P

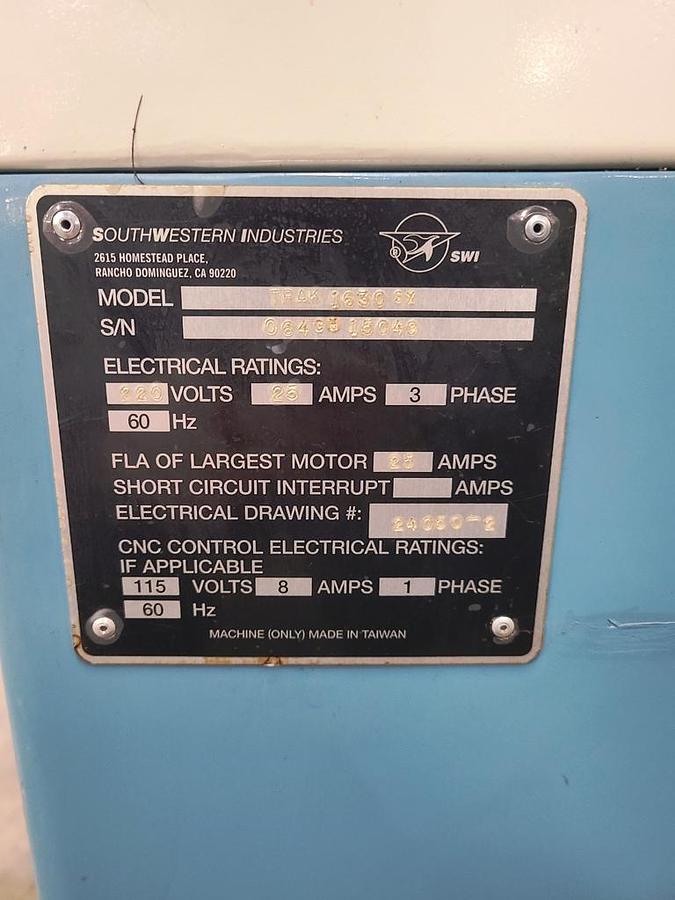

Serial No.: 064CH15049

Model: 1630SX

Height of Centers: 8"

Swing Over Bed: 16"

Swing Over Cross Slide: 8.6"

Swing Over Saddle Wings: 16"

Max. Distance Between Centers: 30"

Cross Slide Travel (X): 8.6"

Longitudinal Travel (Z): 30"

Spindle Taper, Camlock, Size: A2-4

Spindle Speed Range, Infinitely Variable: 150 to 2500 RPM

Spindle Bore: 1.57"

Taper in Headstock Spindle: #5 MT

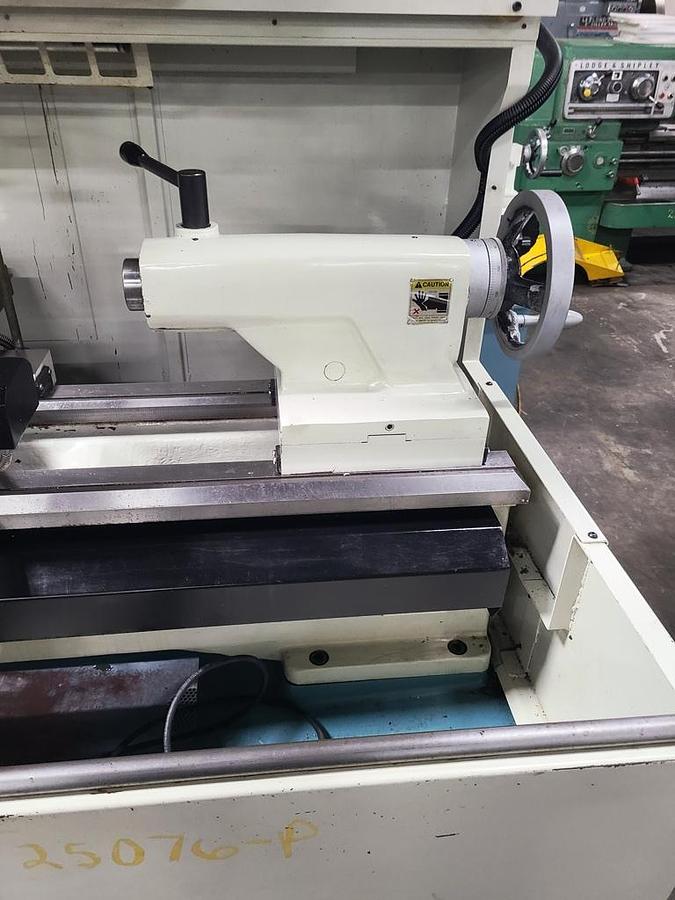

Tailstock Quill Travel: 6.3"

Tailstock Quill Diameter: 2.36"

Tailstock Quill Taper Hole: #5 MT

EQUIPPED WITH:

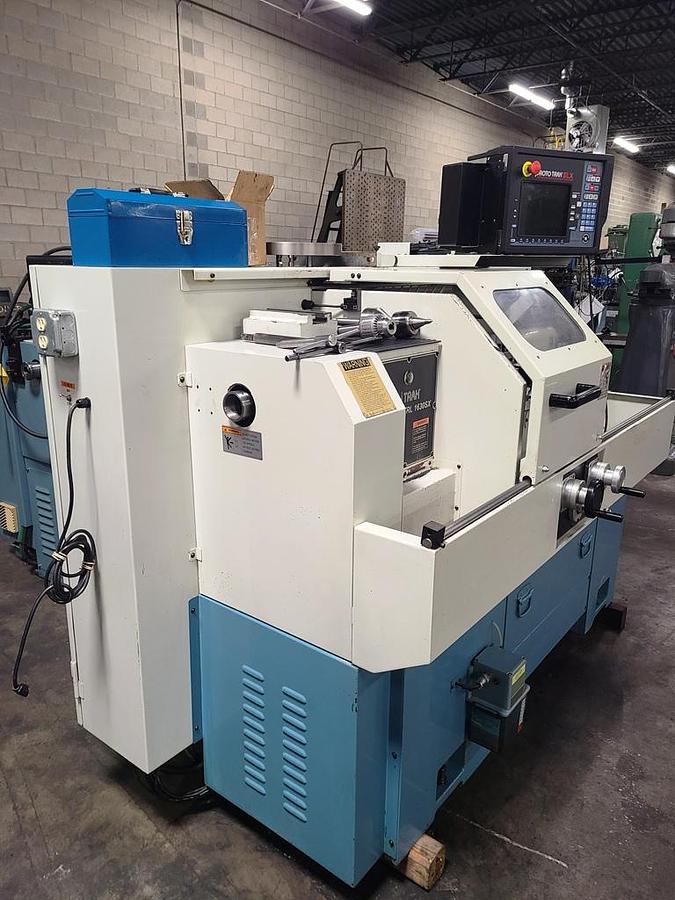

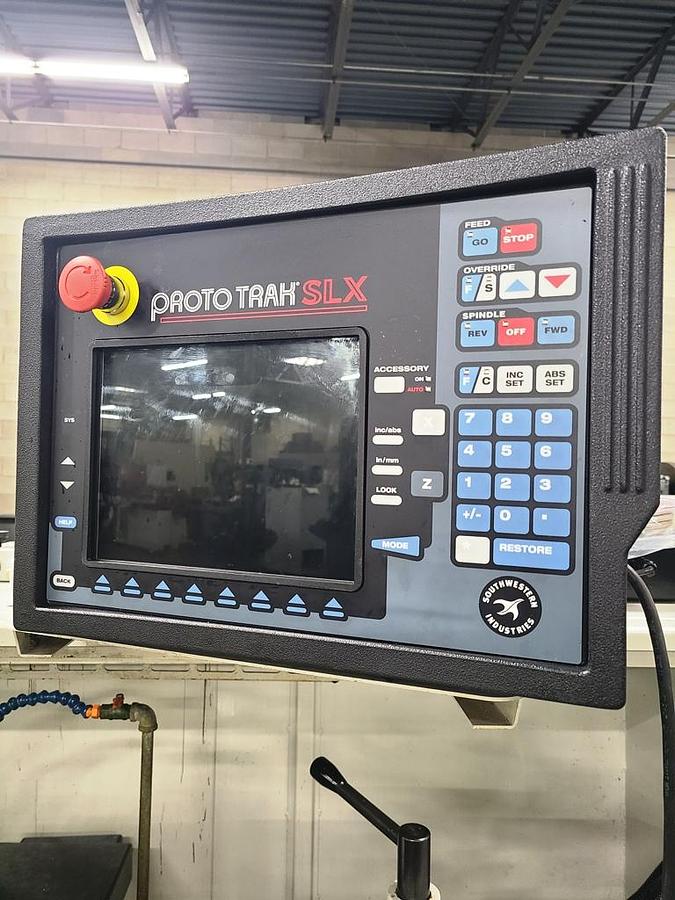

Southwestern Industries-Prototrak, Model SLX CNC Control

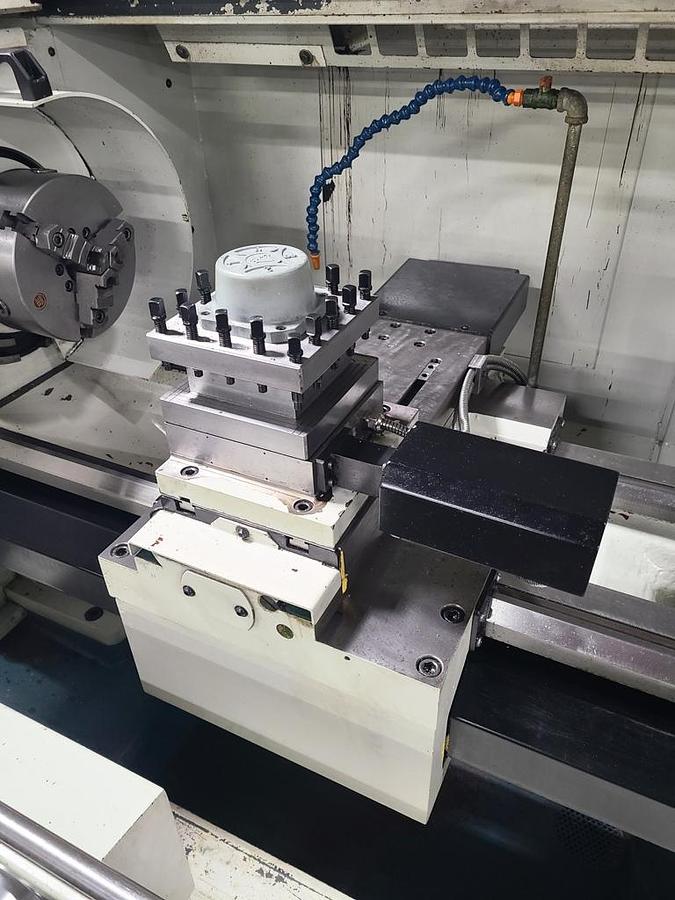

4-Position Programmable Square Tool Post

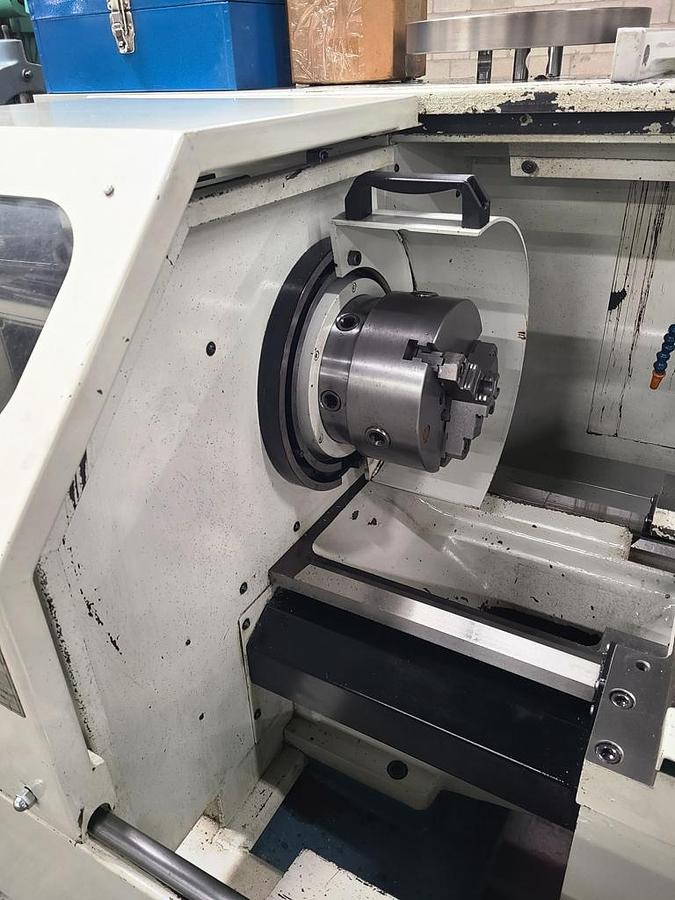

8" BTC 3 Jaw Chuck

Follower Rest

12" Face Plate

Manuals

Back Slide Tool Post Holder

2-Axis Digital Readout During Manual Operation

Constant Surface Speed & Programmable Spindle Speeds

Servo Motors & Ground Ballscrews

AC Spindle Drive

Electronic Handwheels for X & Z Manual Traverse

Jogstick for Rapid Travels

Unlimited Number of Thread Pitches & Up to 10 Leads

Hardened & Ground Bed Ways

Automatic Central Lubrication System for the Slide Ways & Ballscrews

Coolant System

Enclosure

7.5 HP Spindle Drive Motor, 3/60/230 Volt

Approx. Dimensions: 82" x 46" x 67"

Approx. Weight: 2,500 Lbs.
