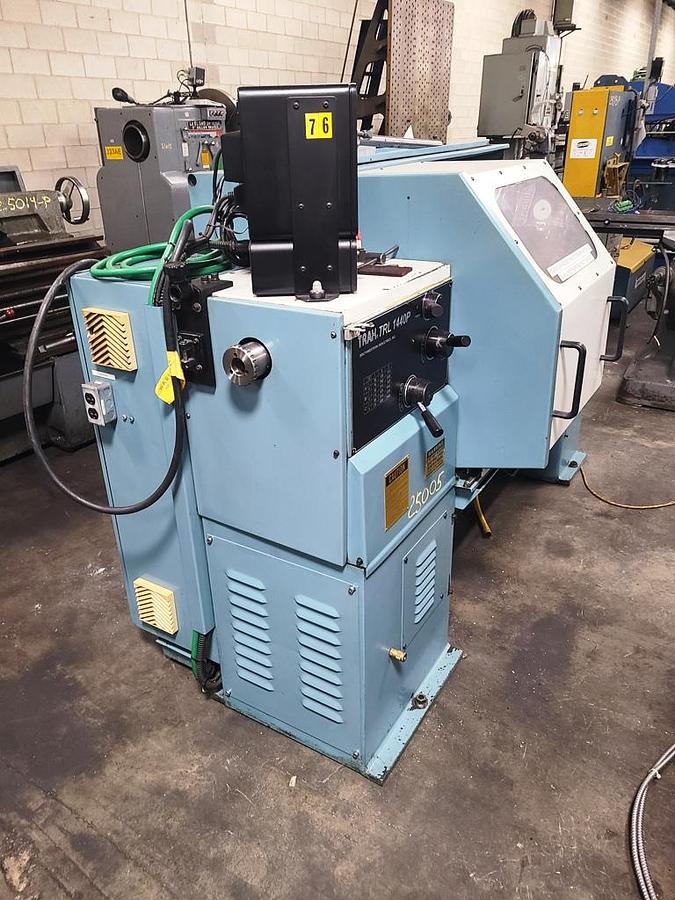

SOUTHWESTERN INDUSTRIES TRAK CNC LATHE

SOUTHWESTERN INDUSTRIES TRAK CNC LATHE

PRICE: Loaded on Truck, Our Warehouse, York, PA …………… $7,500.00

HMC Stock # 25005

Machine Serial No.: 99-4110

Machine Model No.: TRL1440P

New Date: 1997

Swing Over Bed: 14"

Swing Over Saddle: 13-3/16"

Swing Over Cross Slide: 7-13/16"

Distance Between Centers: 40"

Cross Slide Travel: 8"

Bed Width: 10"

Bed Height: 10-1/4"

Spindle Nose: D1-5 Camlock

Spindle Through Hole: 1-5/8"

Spindle Speed Range: 35 to 2400 RPM (18) Speeds

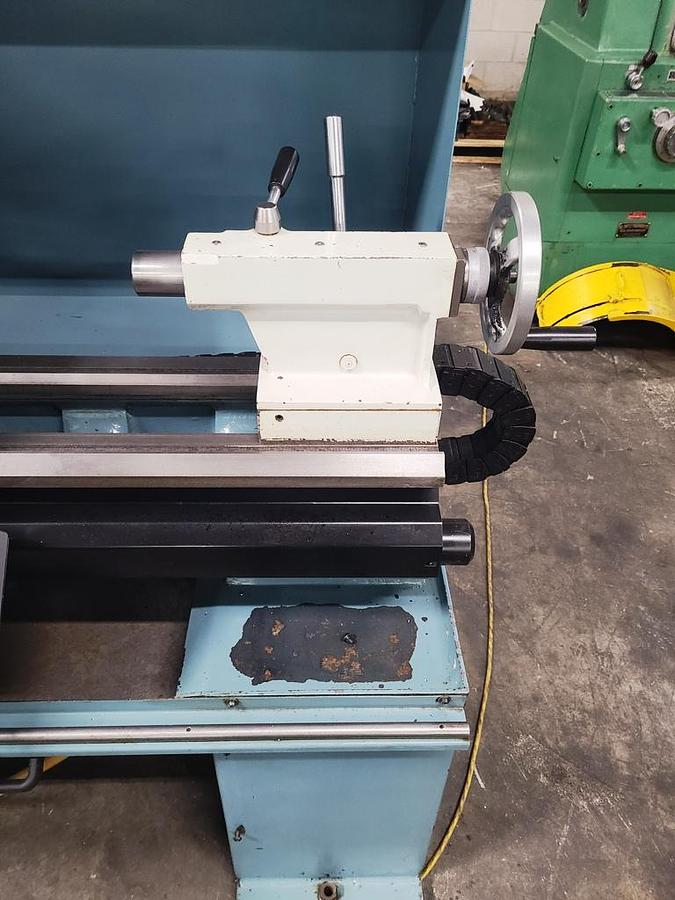

Tailstock Quill Travel: 5-1/2"

Quill Diameter: 1-7/8"

Quill Taper: #3 Morse

EQUIPPED WITH:

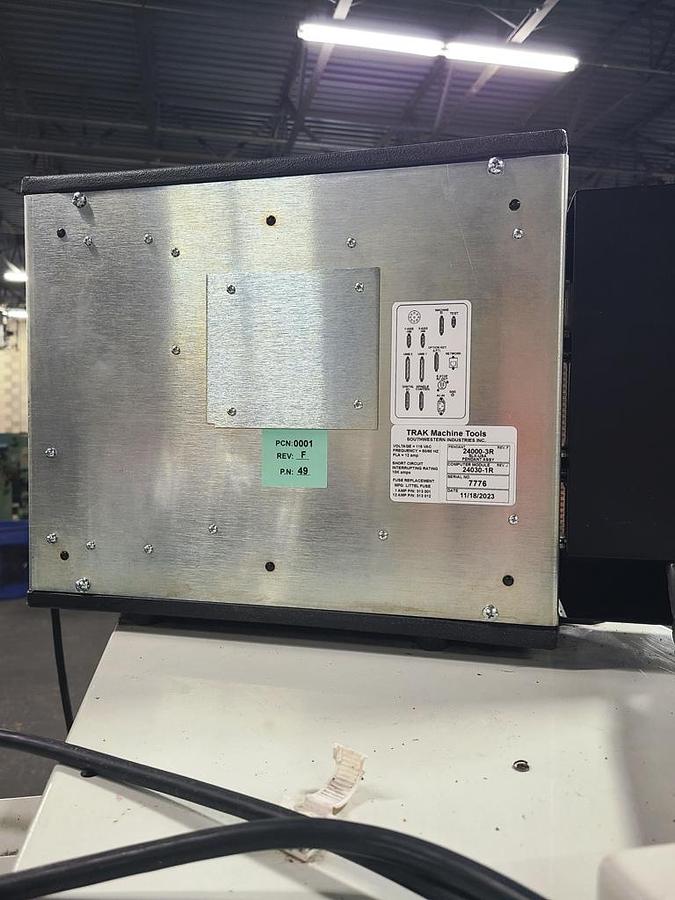

Proto Trak LX2 Control

Electric Hand Wheels

Collet Tube

8" 4 Jaw Bison Chuck

4.5 HP Motor

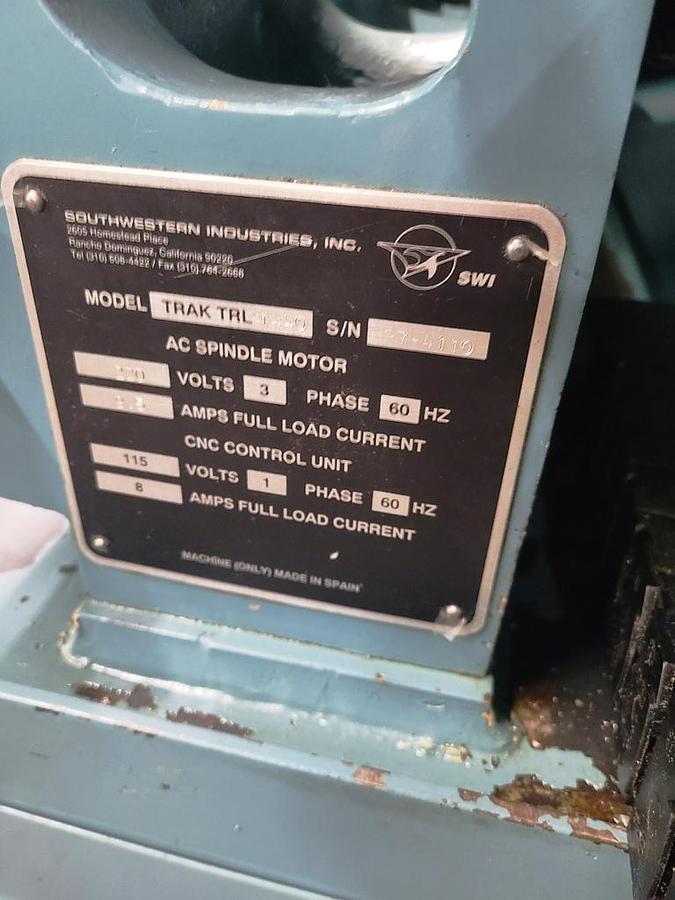

Wired for 3 Phase, 60 Cycle, 220 Volts

Overall Size: 84" LR x 48" FB x 60" High
