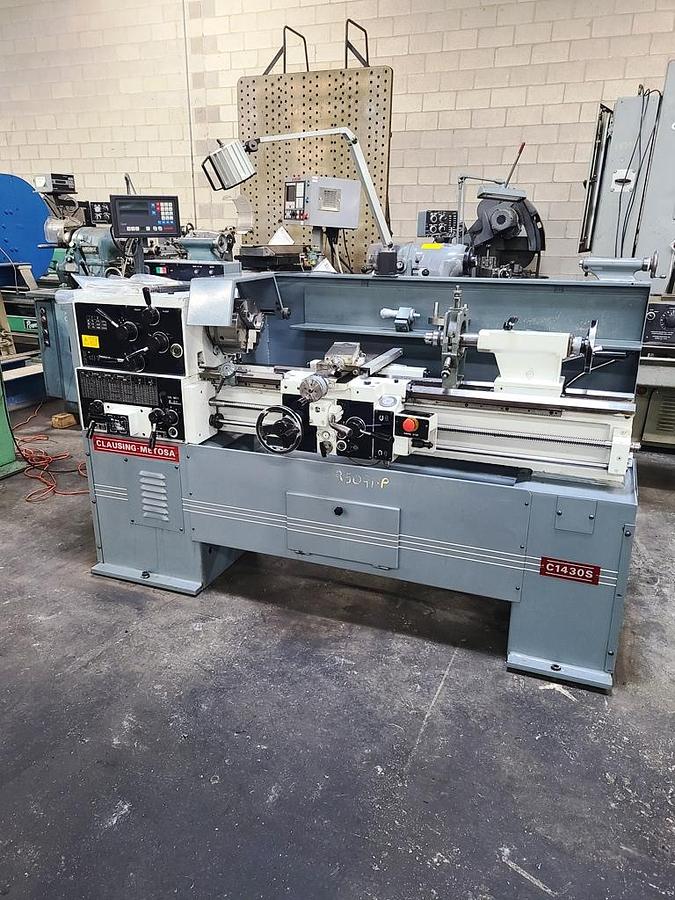

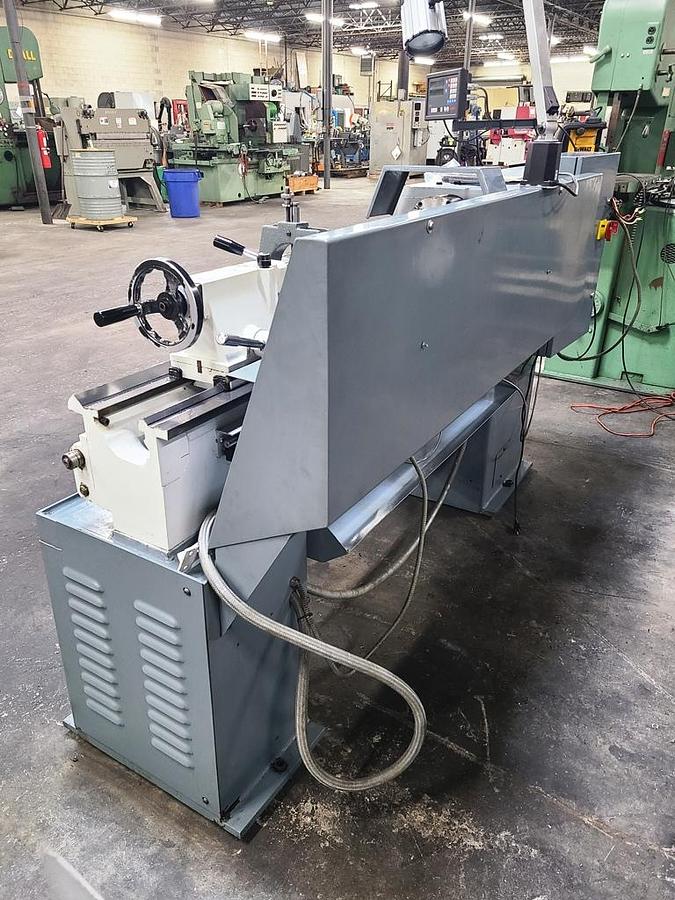

14" X 40" CLAUSING METOSA ENGINE LATHE

14" X 40" CLAUSING METOSA ENGINE LATHE

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $12,500.00

HMC Stock # 25091-P

Serial No.: 30297

Model: C1340S

Year: 1999

Purchased new by single owner small machine shop, R&D level use.

Distance Between Centers: 40"

Swing Over Bed: 14"

Swing Over Gap: 20-7/16"

Swing Over Carriage: 13-3/16"

Swing Over Cross Slide: 8-5/64"

Bed Width: 10"

Gap Length in Front of Face Plate: 4-3/4"

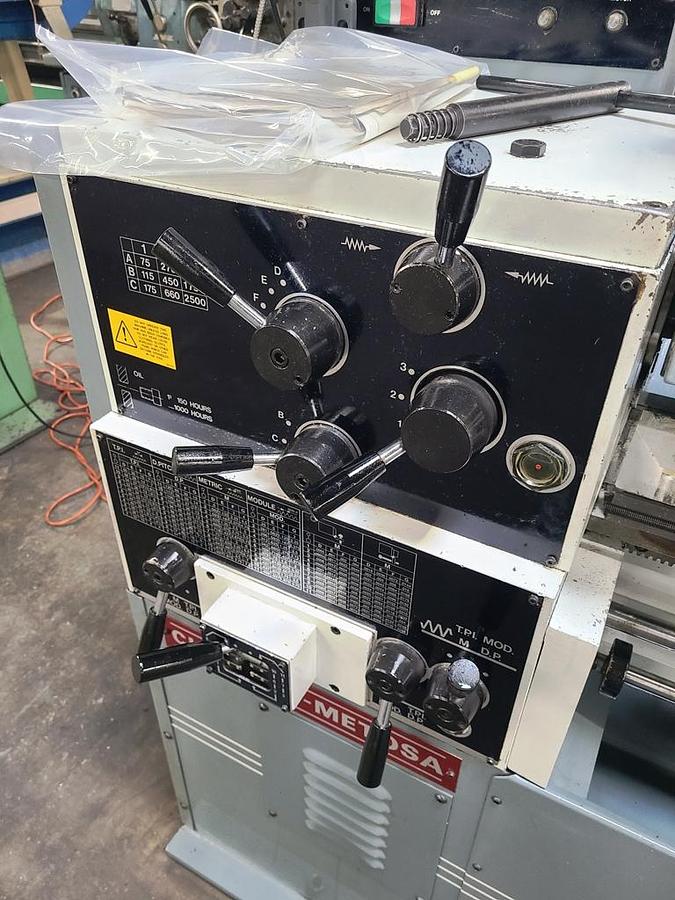

(9) Spindle Speeds: 75 - 2500 RPM

Spindle Bore: 1-5/8"

Spindle Nose: D-5 Camlock

Main Spindle Taper: #4 Morse

(44) Longitudinal Feeds: .0018 - .026 Thousandths per Rev

(44) Cross Feeds: .0005 - .00076 Thousandths Per Rev

(44) Metric Threads: .5 - 75 mm

(44) Whitworth Threads in T.P.I: 60 - 4 TPI

(44) Diametral Pitch Threads: 120 - 8

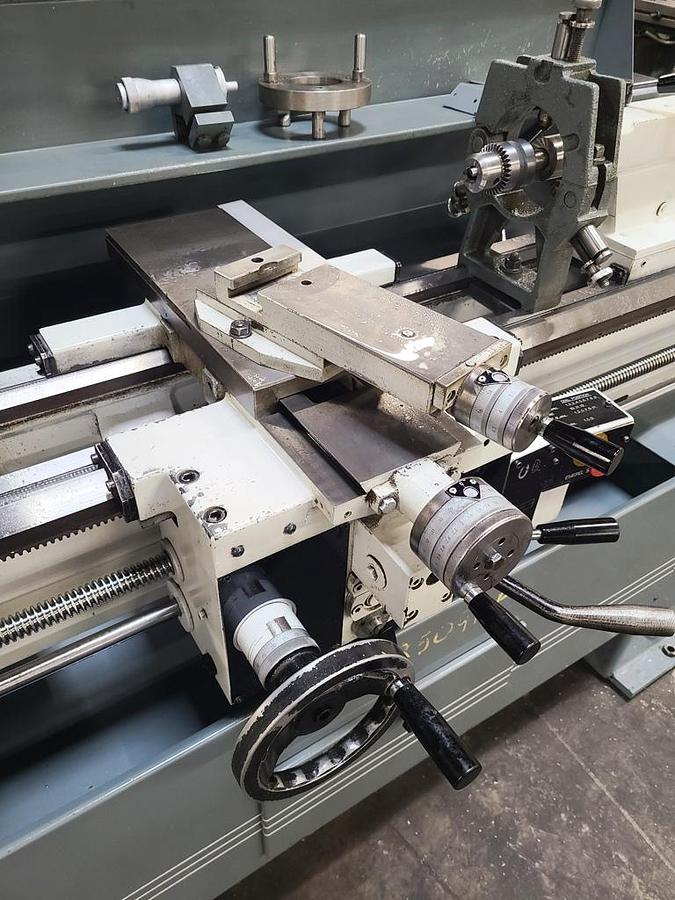

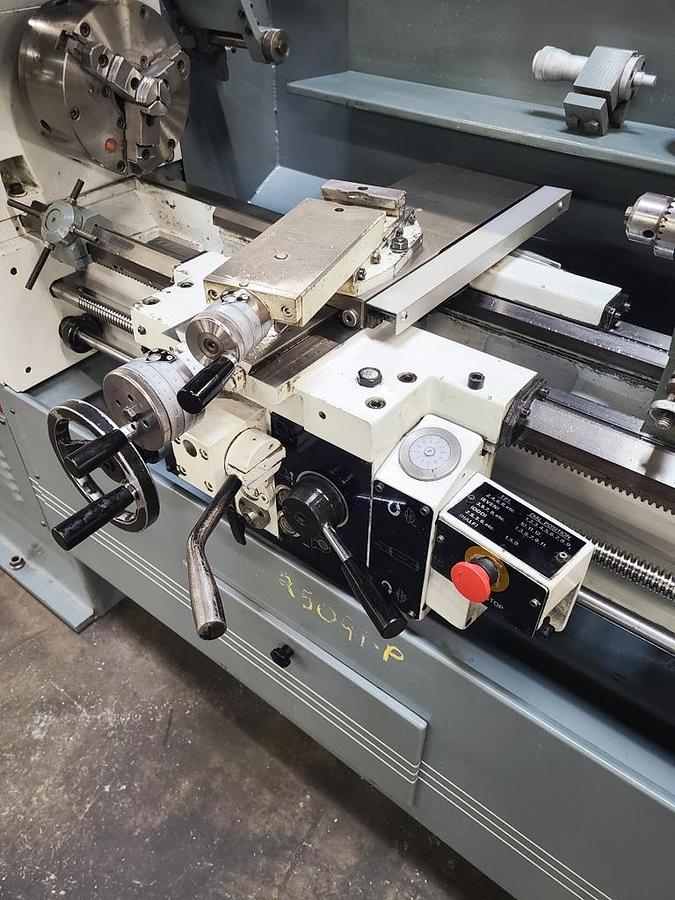

Cross Slide Travel: 9-5/8"

Tool Post Slide Travel: 4-3/4"

Maximum Tool Dimensions: 3/4" x 3/4"

Tailstock Diameter: 1-7/8"

Tailstock Travel: 5-1/2"

Tailstock Taper: #3 Morse

EQUIPPED WITH:

Newall Digital Read Out

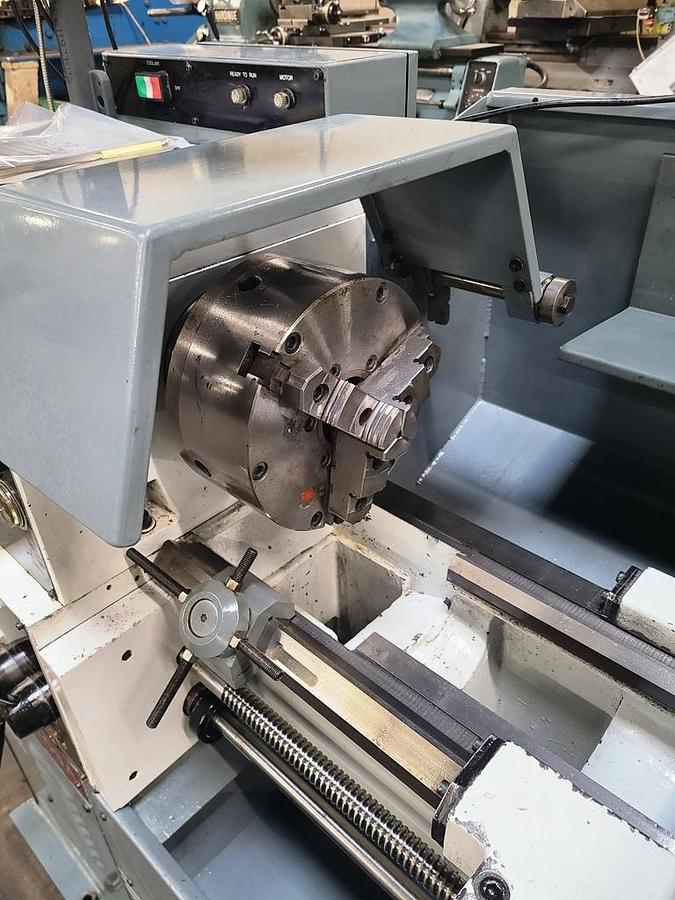

8" 3 Jaw Chuck

6-1/2" Face Plate

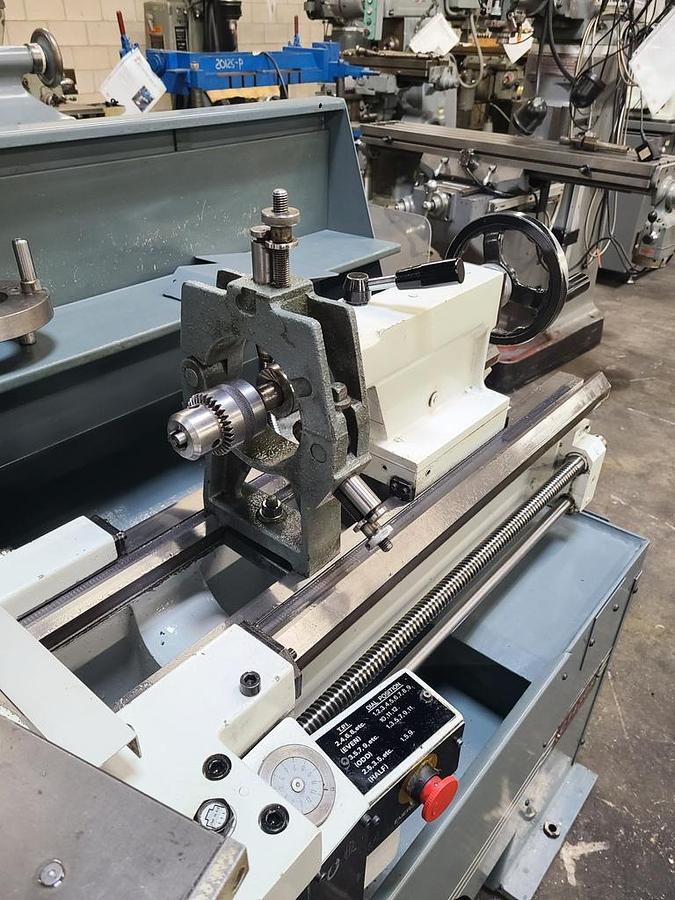

4" Bronze Tip Steady Rest

Four Position Turret Stop for Carriage

Micrometer Carriage Stop

Work Light

Manual

3 HP Motor

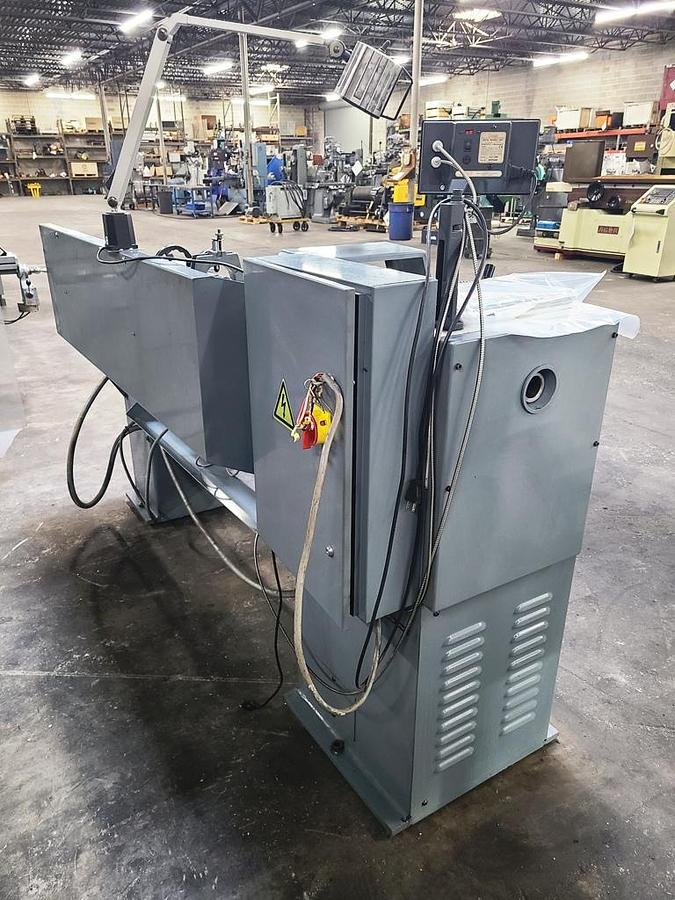

Wired for 3 Phase, 60 Cycle 220 Volts

Overall Size: 84" LR x 36" FB x 60" High x 2290 Lbs.
