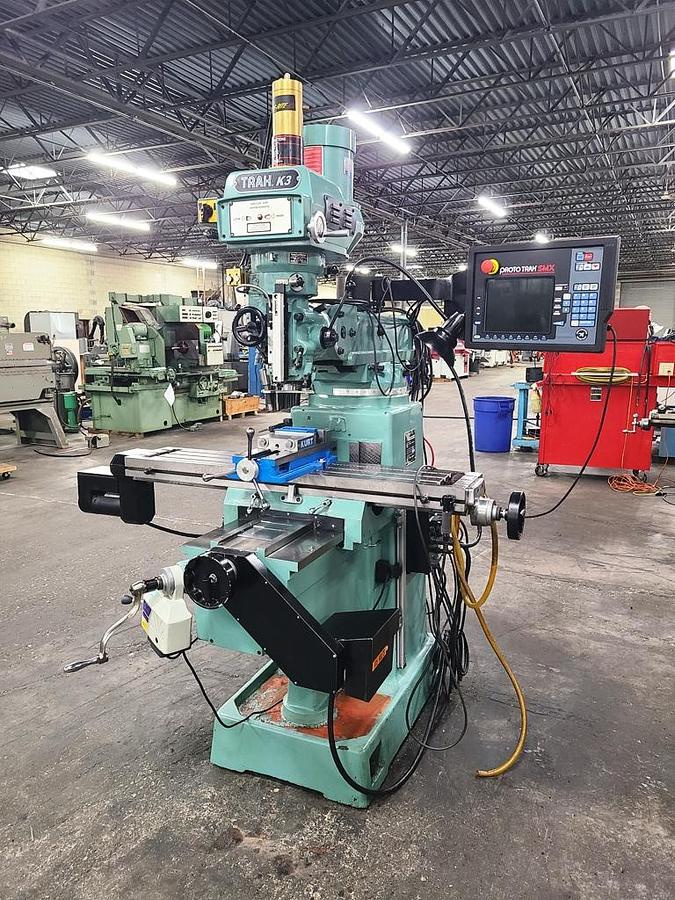

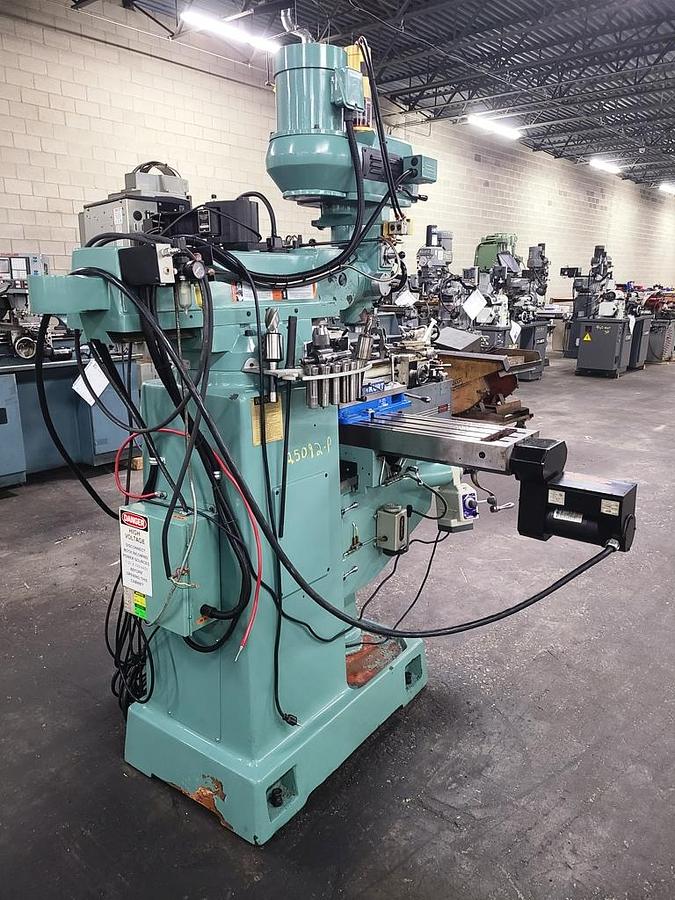

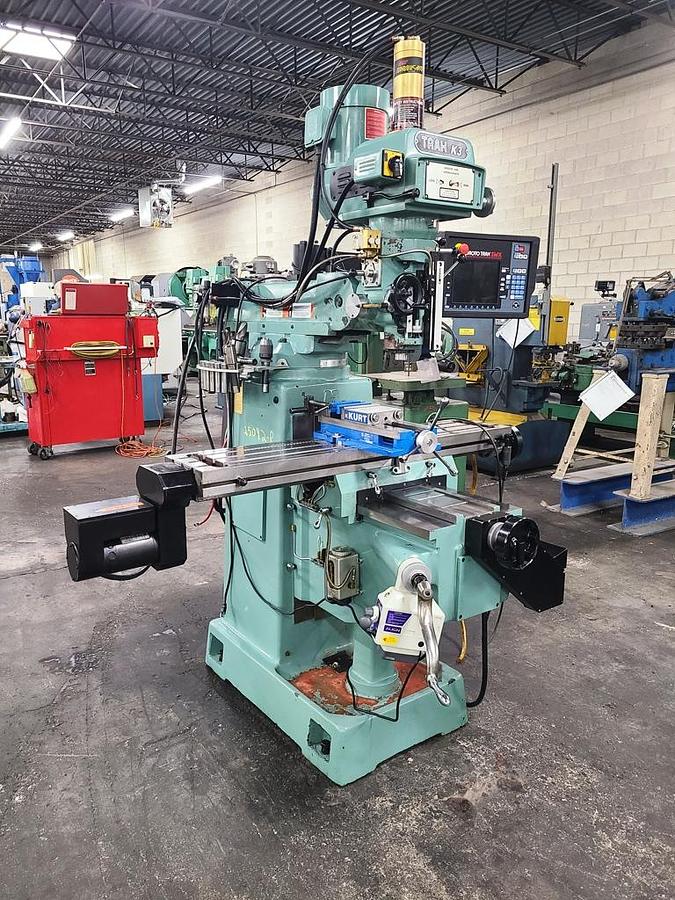

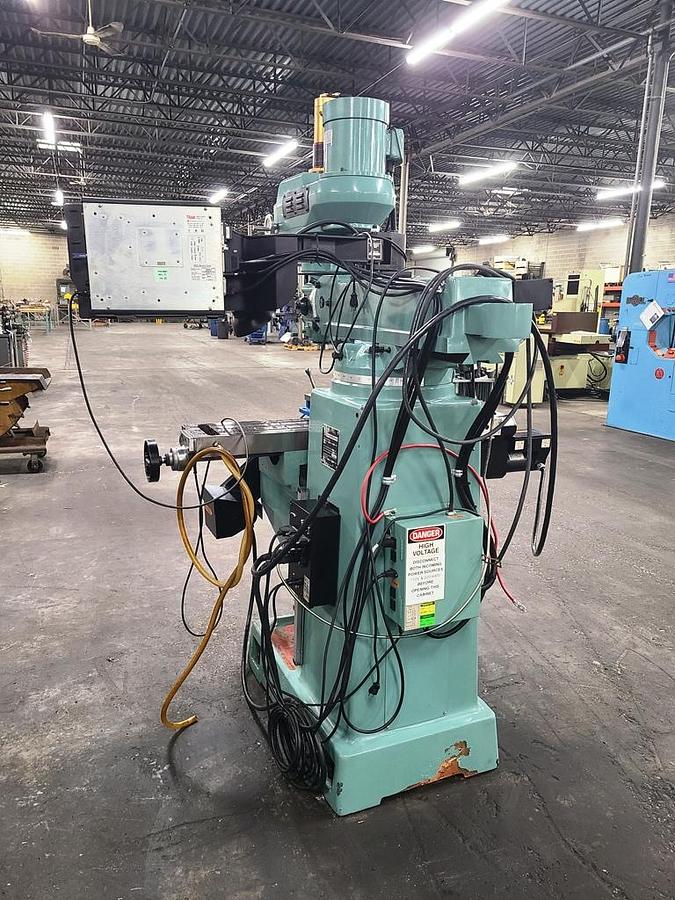

TRAK 2-AXIS CNC KNEE MILL

TRAK 2-AXIS CNC KNEE MILL

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $10,500.00

HMC Stock # 25092-P

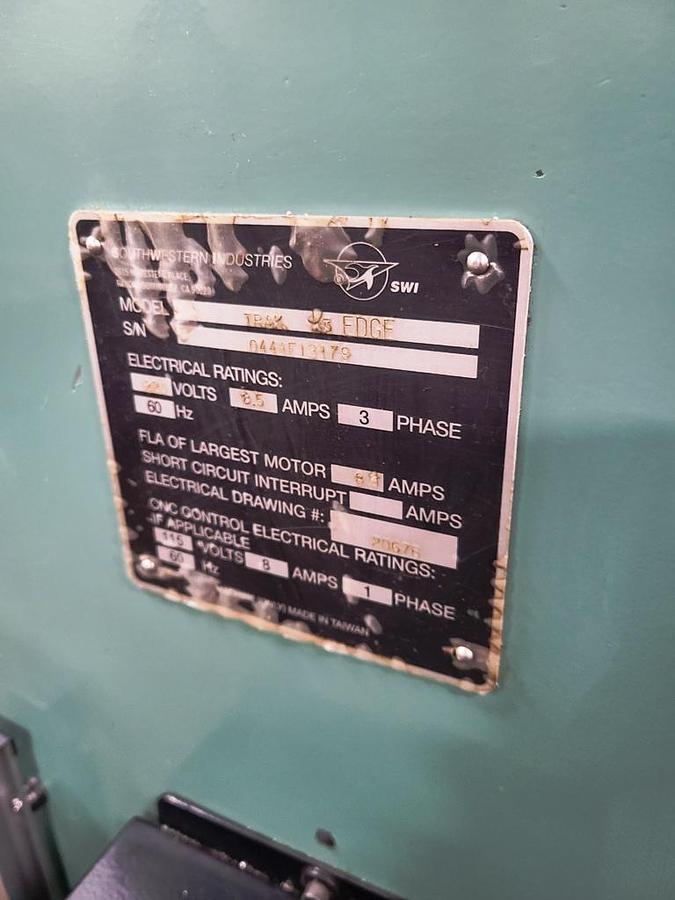

Serial No.: 044AF13179

Model: K3 Edge

Table Size: 50" x 10"

Maximum Weight on Table: 850 Lbs.

T-Slots: 5/8" x 3 x 2-1/2"

Table Travel: 32"

Saddle Travel: 16"

Knee Travel: 16"

Ram Travel: 15"

Maximum Quill Travel, 2-Axis CNC: 5"

Quill Diameter: 3-3/8"

Spindle Taper: R8

Spindle Speed, Vari-Speed Head: 60-500 & 600-4200 RPM

Head Tilt: 45° Front-Back & 90° Left-Right

Maximum Rapid Feed, X & Y: 100 IPM

Maximum Rapid Feed, Z CNC: 50 IPM Down & 100 IPM Up

EQUIPPED WITH:

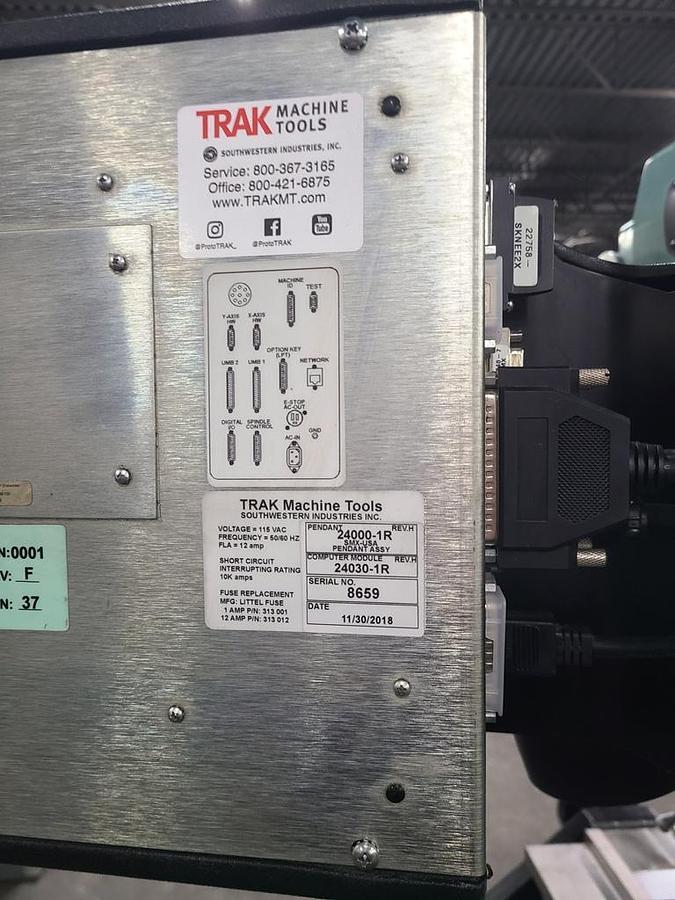

2018 Updated SMX Control

3-Axis DRO (Vertical Reads from Quill)

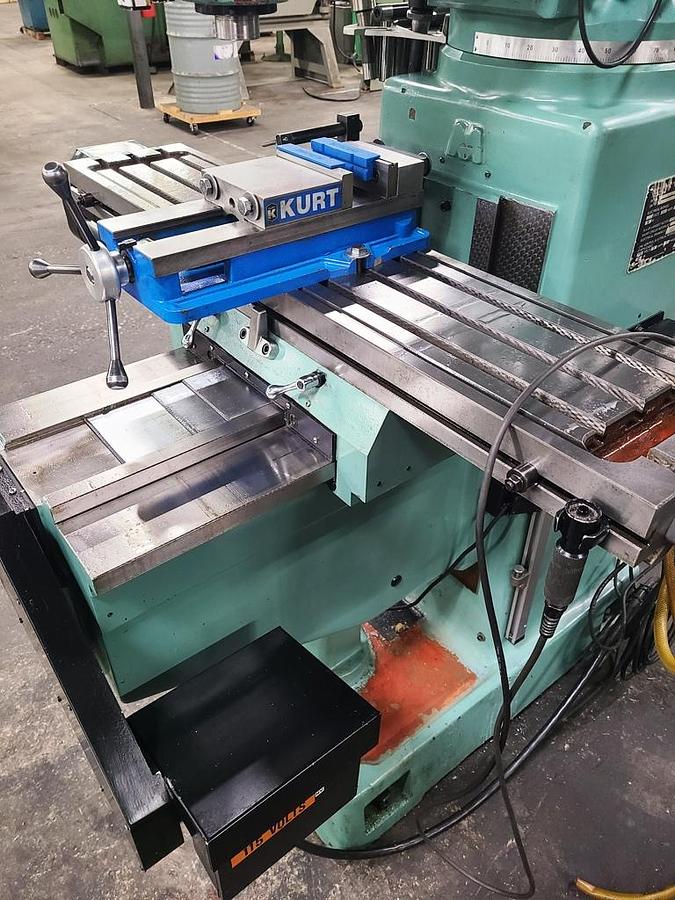

6" Kurt Vise

Assorted R8 Collets

Import Brand Power Feed on Knee

Manuals

Graymills Coolant Tank and Pump

One Shot Lube

Torque Rite Air Power Draw Bar

Hard Box Ways

3 HP Main Motor

Wired for 3 Phase, 60 Cycle, 220 Volts

Overall size: 71" LR x 59" FB x 84" High x 2816 Lbs.

Excellent Condition from Single User Shop, Purchased New, R&D Lab
