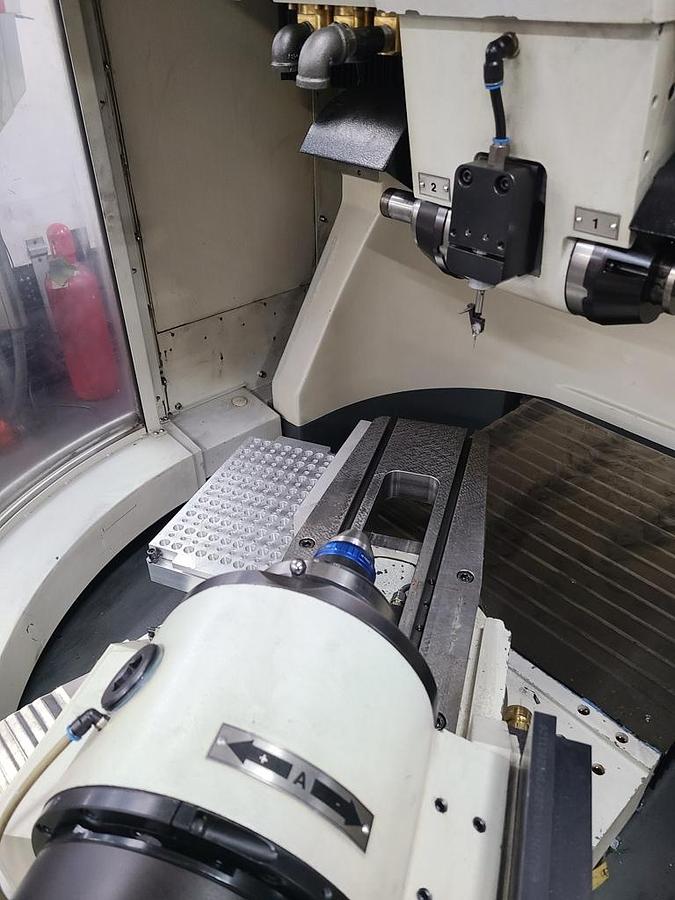

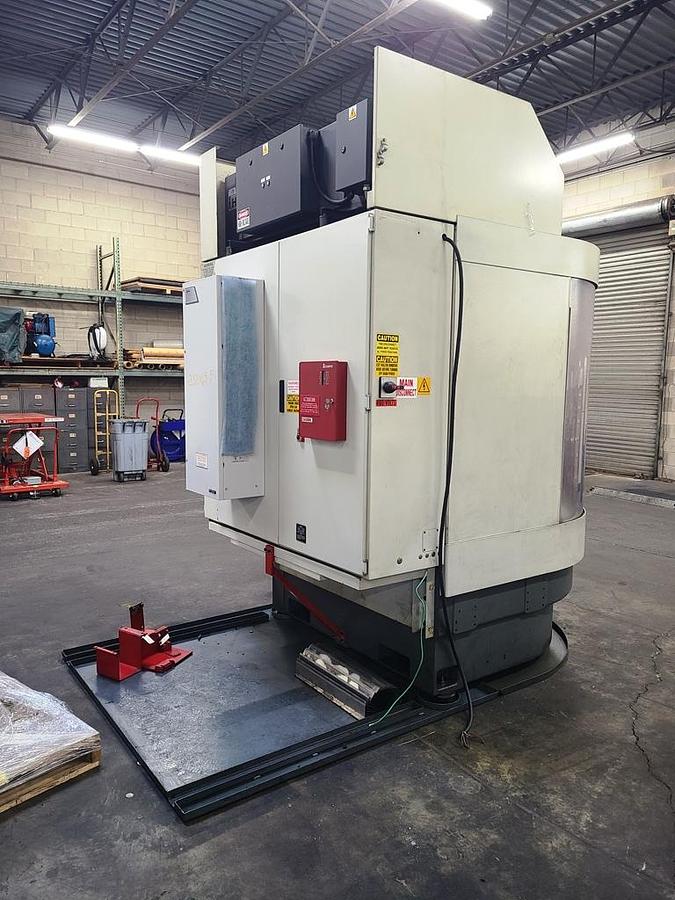

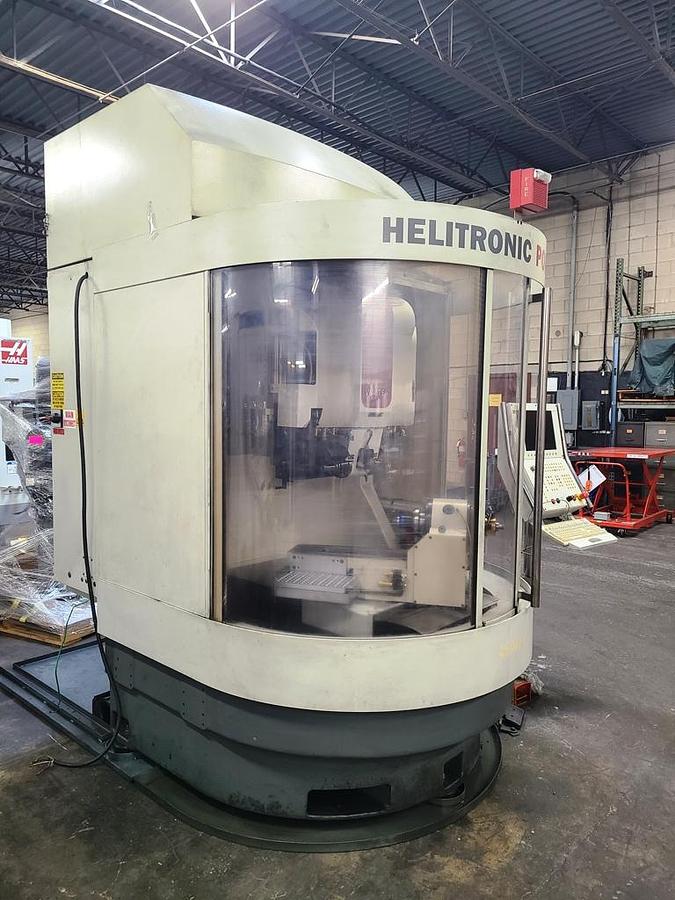

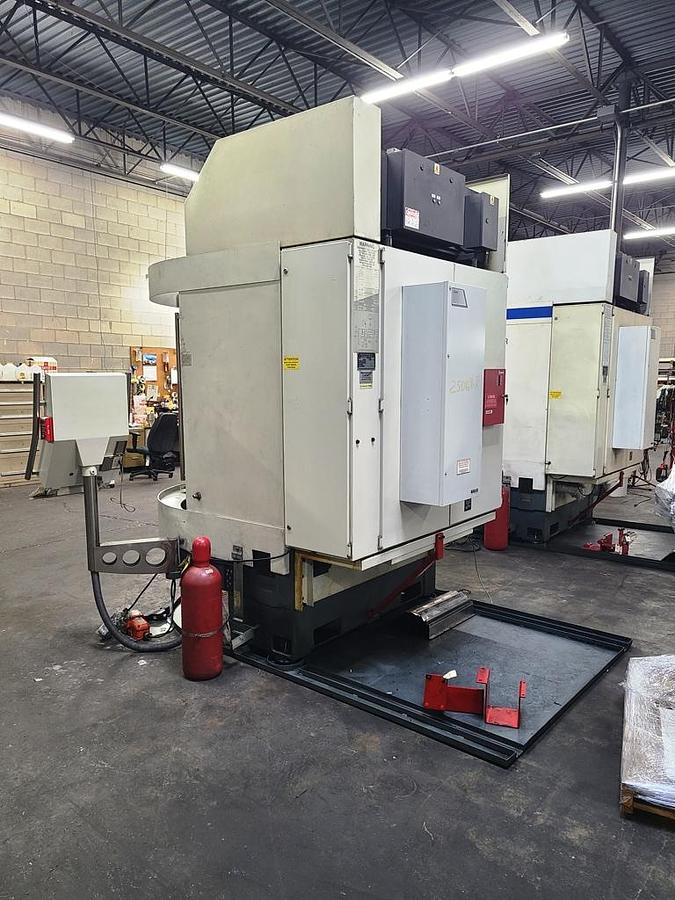

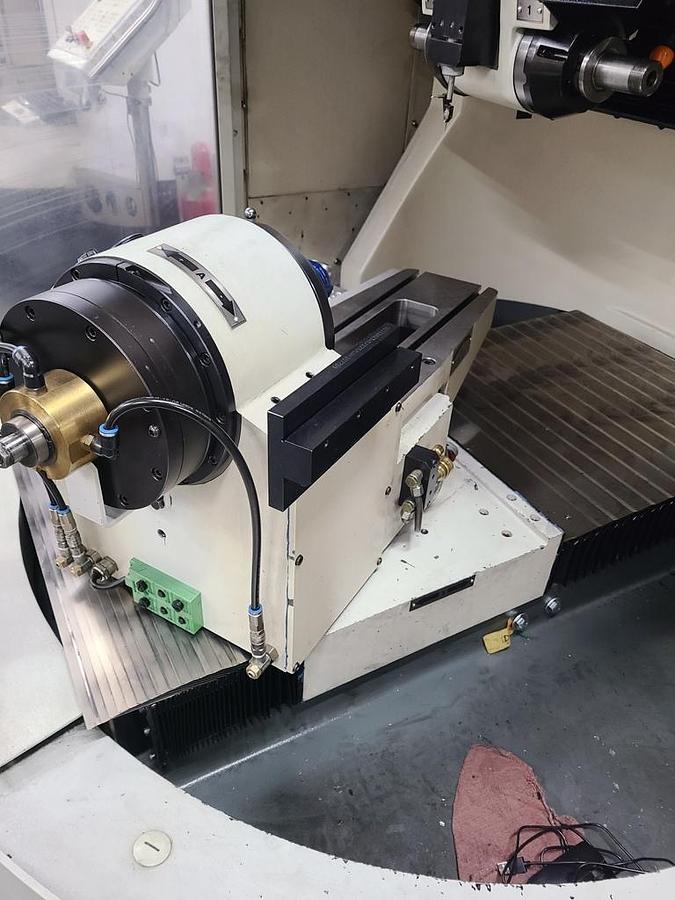

WALTER POWER CNC TOOL & CUTTER GRINDER

WALTER POWER CNC TOOL & CUTTER GRINDER

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $39,500.00

HMC Stock # 25069-P

Serial No.: 643545

Model: Helitronic Power

Year: 2005

SPECIFICATIONS:

Travels:            Longitudinal (X-Axis):                       19.3" (490mm)

                        Vertical (Y-Axis):                               12.6" (320mm)

                        Cross (Z-Axis):                                   26.0" (660mm)

                        Rotary Table (C-Axis):                       +/- 200 Degrees

                        Rotation (A-Axis):                              Infinite

Speeds:            Rapid Traverse – Linear Axe:            600" / Min.

                        Rotary Table:                                      120 Deg. / Sec.

                        Rotation:                                             100 RPM

Max. Tool Dimensions:

                        Max. Diameter of Workpiece:            12.6" (320mm)

                        Length of Work Piece – Peripheral:    15.7"(400mm)

Face Grinding:                                                            11.8" (300mm)

Linear Resolution:                                                      0.00004mm

Radial Resolution:                                                      0.0001 Degrees

Diameter of Spindle:                                                   3.1" (80mm)

Max. Diameter of Grinding Wheel:                            8" (200mm)

Spindle Speeds:                                                          0 – 9500 RPM

Spindle Motor:                                                            16 HP, 3/60

EQUIPPED WITH:

HMC 600 Control

Tool Loading Arm

Mist Collector

Fire Suppression System

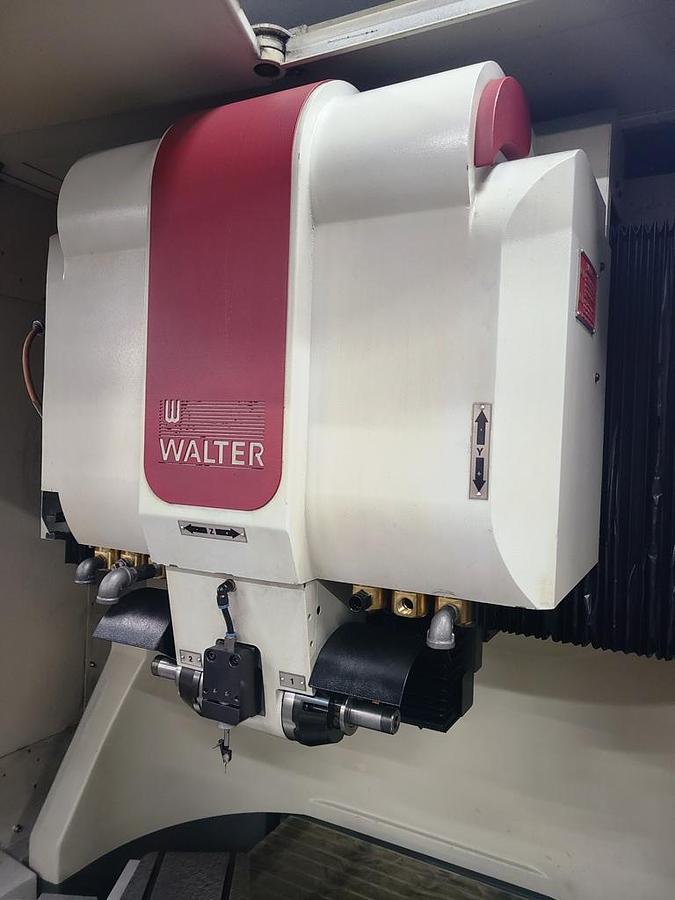

Double-Ended Grinding Spindle

Heli-Probe Measuring & Positioning System

Air Conditioning Unit

(3) Programmable Coolant Valves per Spindle

Coolant Tank - No Pump

Machine Size: 66" x 95" x 112"

Tank Size: 61" x 50" x 26"
