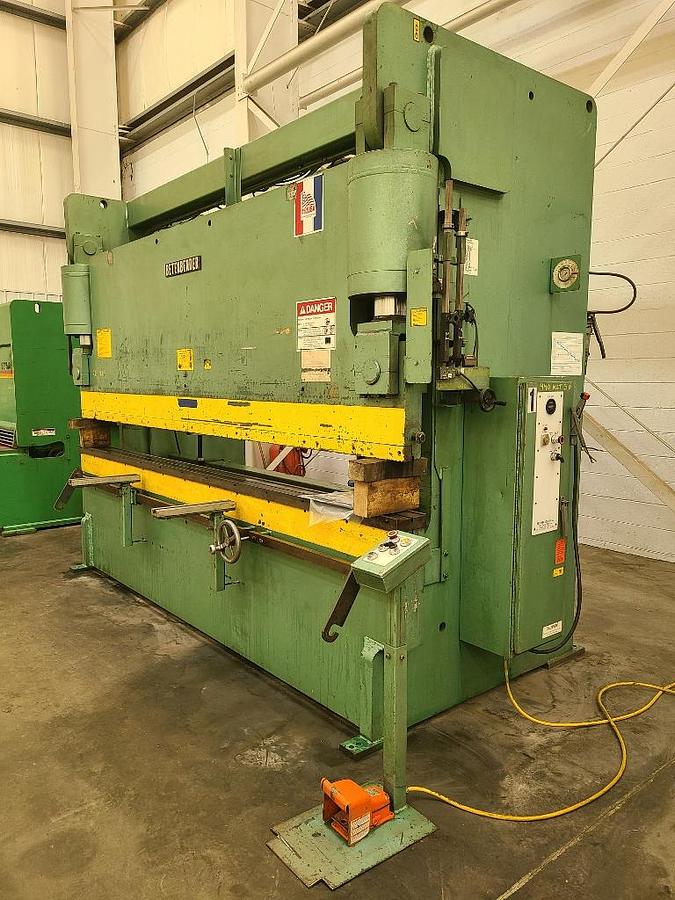

300 TON X 12' BETENBENDER HYDRAULIC PRESS BRAKE

300 TON X 12' BETENBENDER HYDRAULIC PRESS BRAKE

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $74,500.00

HMC Stock # 26002-P

Serial No.: 89902

Model: 12-300T

Year: 2002

Maximum Tonnage: 300

Bed Length: 144-1/2"

Bed Width: 6"

Distance between Housings: 126-1/2"

Stroke: 6"

Open Height: 16"

Closed Height: 10"

Ram Speeds Approach/Return/Press: 50/70/25 Inches Per Minute

Bed Height: 37"

Bed Width: 7"

Throat: 8"

EQUIPPED WITH:

24" Manual Operated Front Back Gage

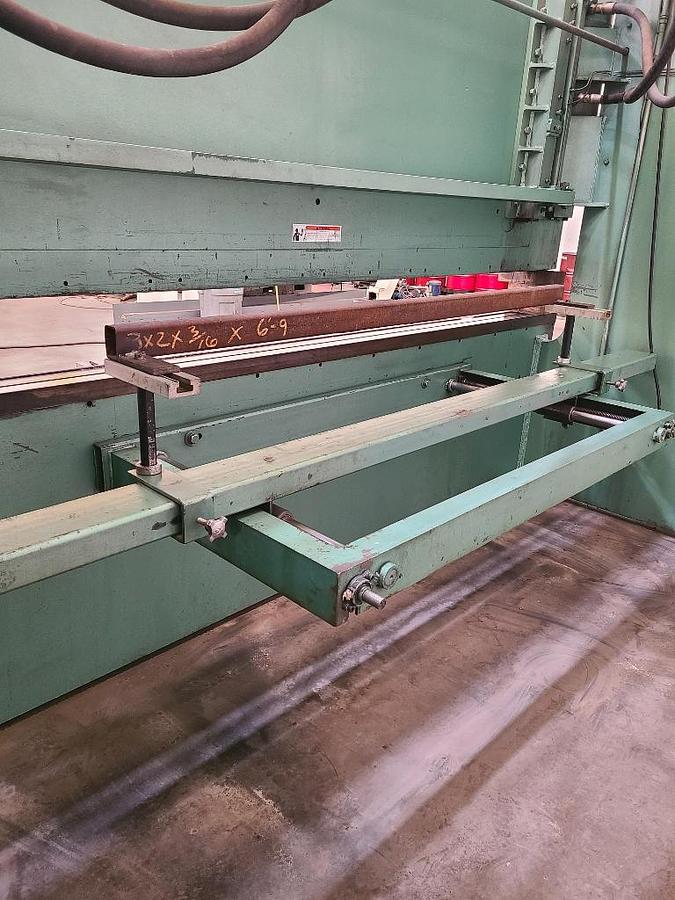

(2) Front Sheet Supports

5-3/4" Lower Die Holder

Side Mounted Hydraulics

Manual Lube

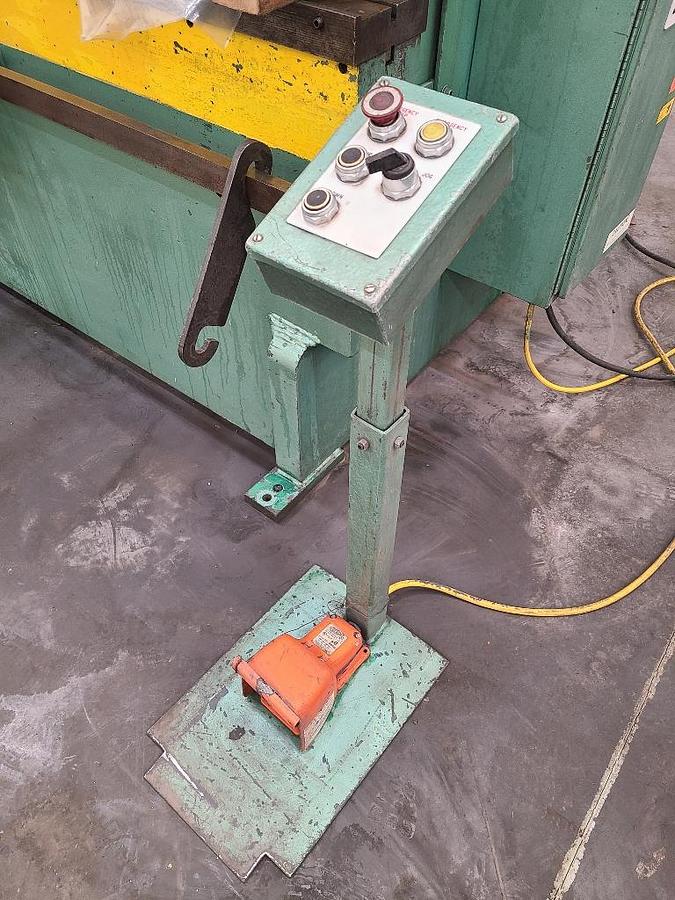

Foot Pedal with Operator Stand

Up/Down

Run/Jog

Bottom Time Delay

Heavy Duty Rack with Tooling

12' Upper

10' Lower 2-1/2" Opening

10' Upper

4' Upper

10' Lower 2-1/2" Opening

6' Upper

6' Lower

10' Upper Goose Neck

30HP Main Motor

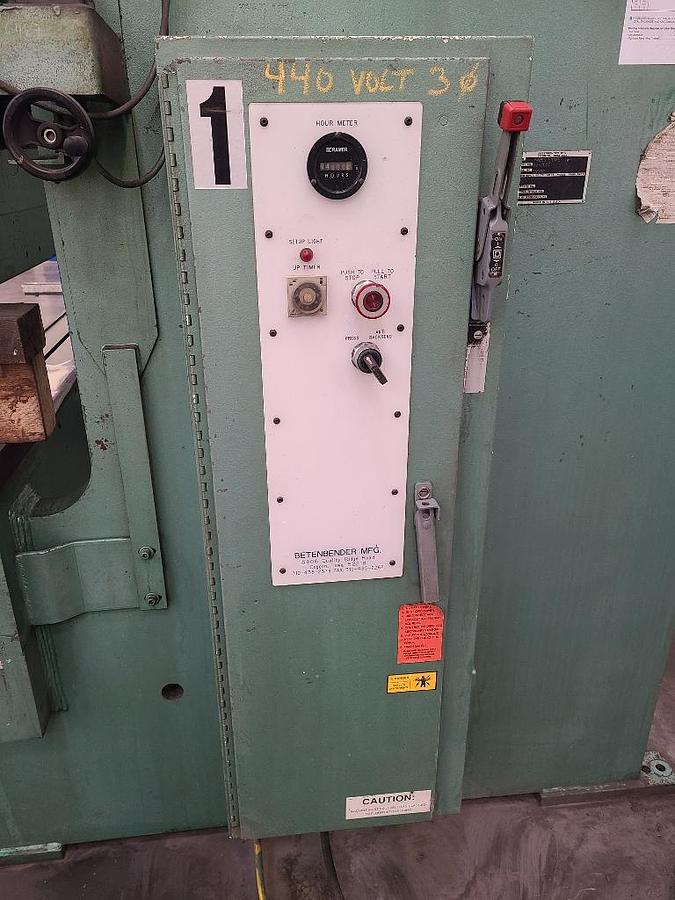

Wired for 3 Phase, 60 Cycle, 440 Volts

Overall Size Machine: 167" LR x 72" FB x 116" High x 37,000 Lbs.

Tooling Rack: 74" LR x 48" FB x 72" High

Skid of Brake Tooling: Size and Weight TBD
