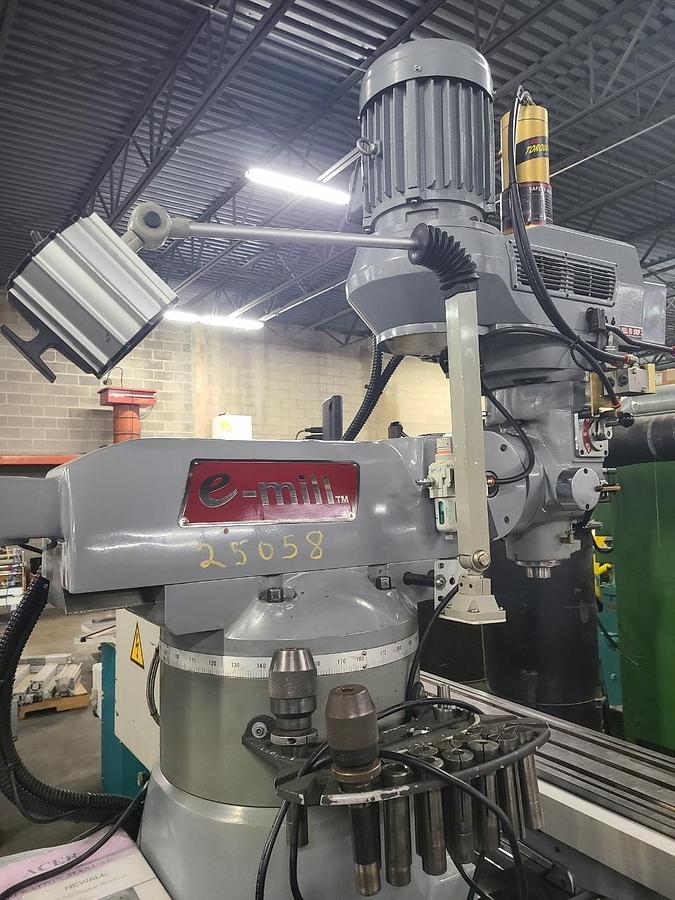

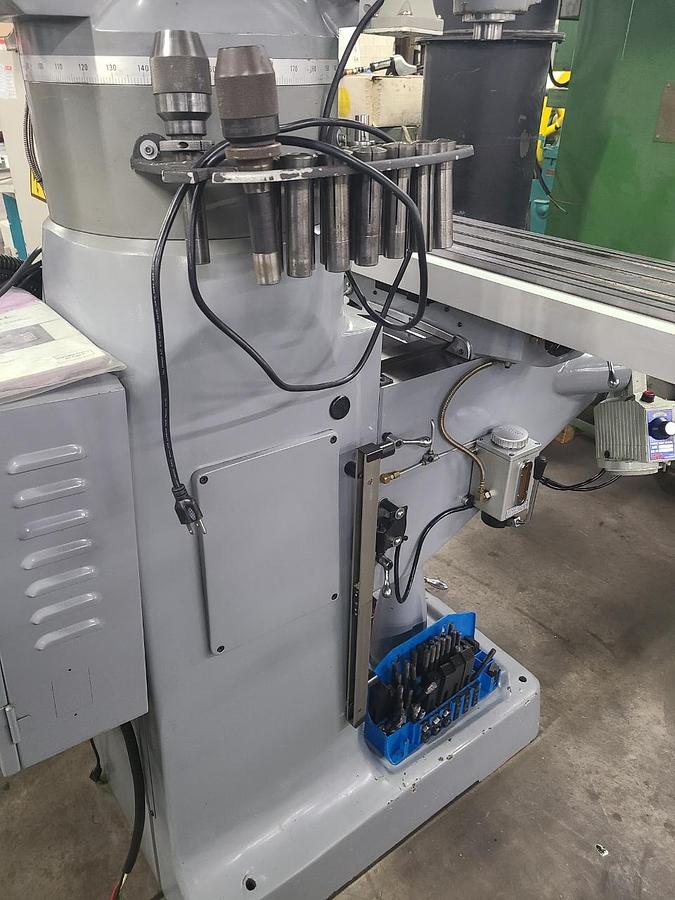

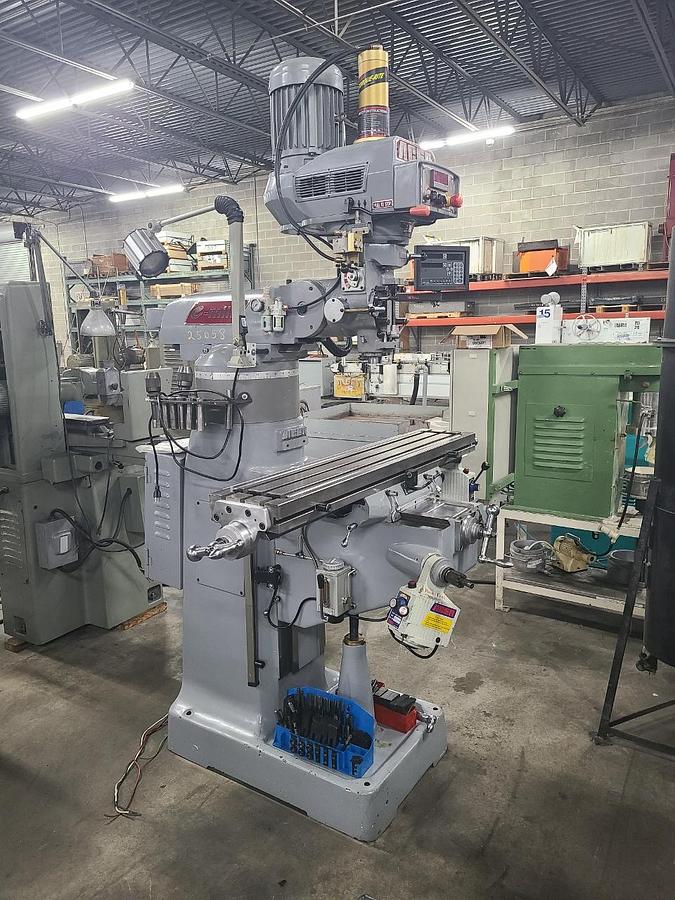

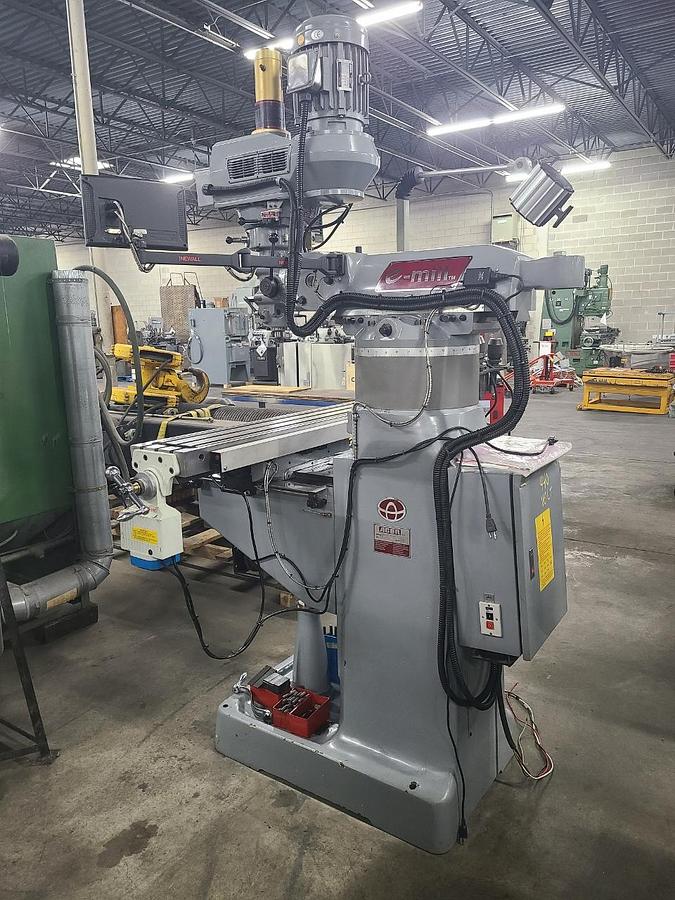

ACER MILLING MACHINE

ACER MILLING MACHINE

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $7,950.00 AS IS

HMC Stock # 25058-C

Serial No.: N15060320

Model: E-Mill 3VS II

Year: 2015

NOTE: This machine is being sold on consignment for a customer. It is located on our floor and is available to be inspected under power. There is no warranty or return privilege. The machine is offered AS IS.

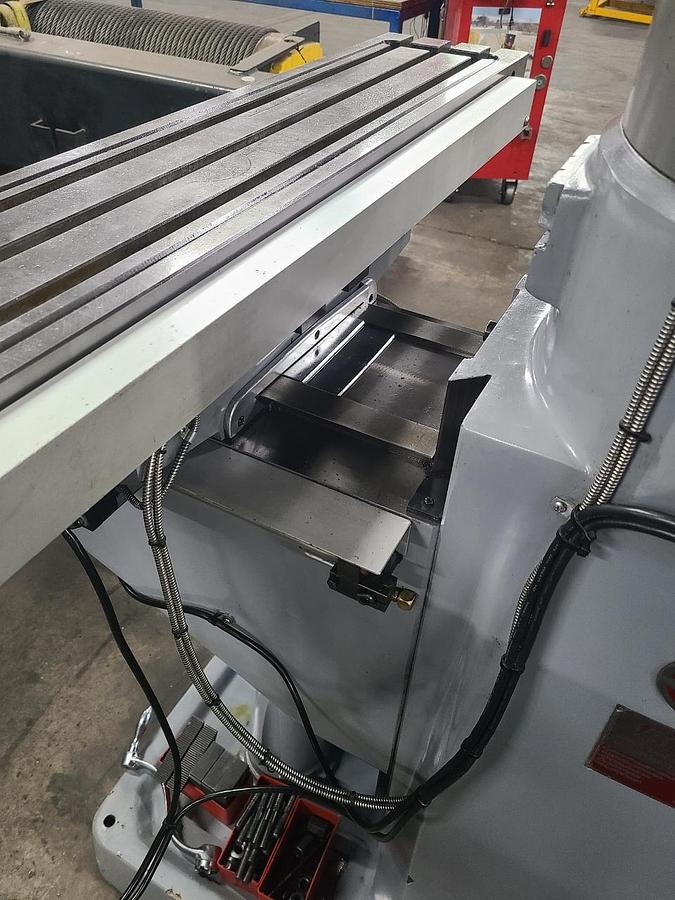

Table: 9" x 49" Table

(3) T-Slots: 5/8" Wide

Longitudinal Travel: 34"

Cross Travel: 12"

Vertical Knee Travel: 16"

Ram Travel: 12"

Spindle Taper: R8

Spindle Speeds: 60-4500 RPM (Electronic Variable Speed Drive)

(3) Power Quill Feeds: .0015, .003, .006 Inches Per Rev.

Quill Diameter: 3-3/8"

Quill Travel: 5"

EQUIPPED WITH:

Newall Digital Read Out

*Digital Read Outs Can Change Travel Lengths on Table

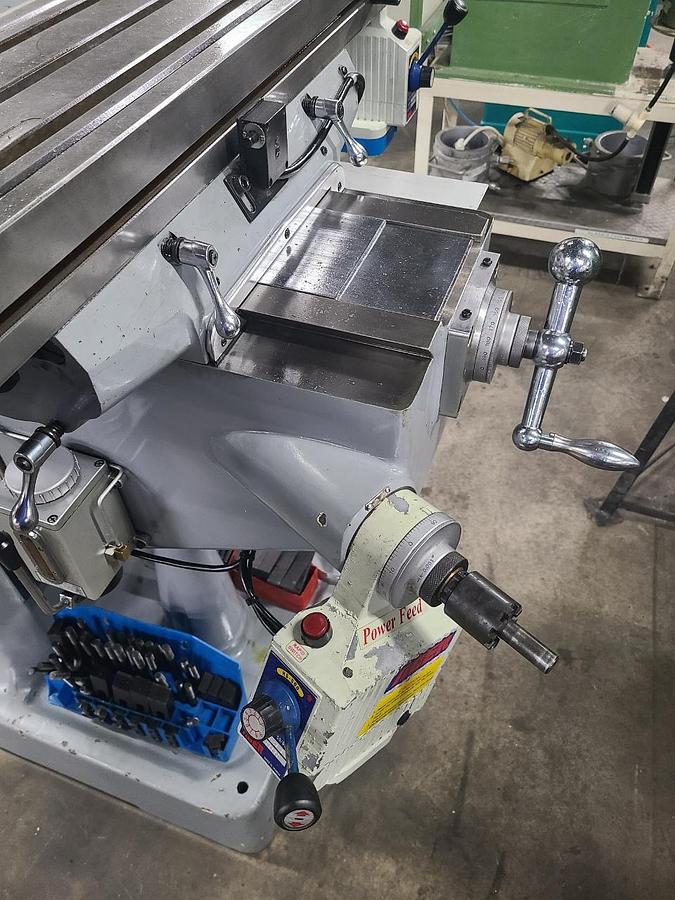

Import Brand Power Feed on Knee and Table

Torque-Rite Power Draw Bar

6" Riser Installed

Hold Down Kits

Assorted Collets

One Shot Lube

Manuals

3 HP Main Motor

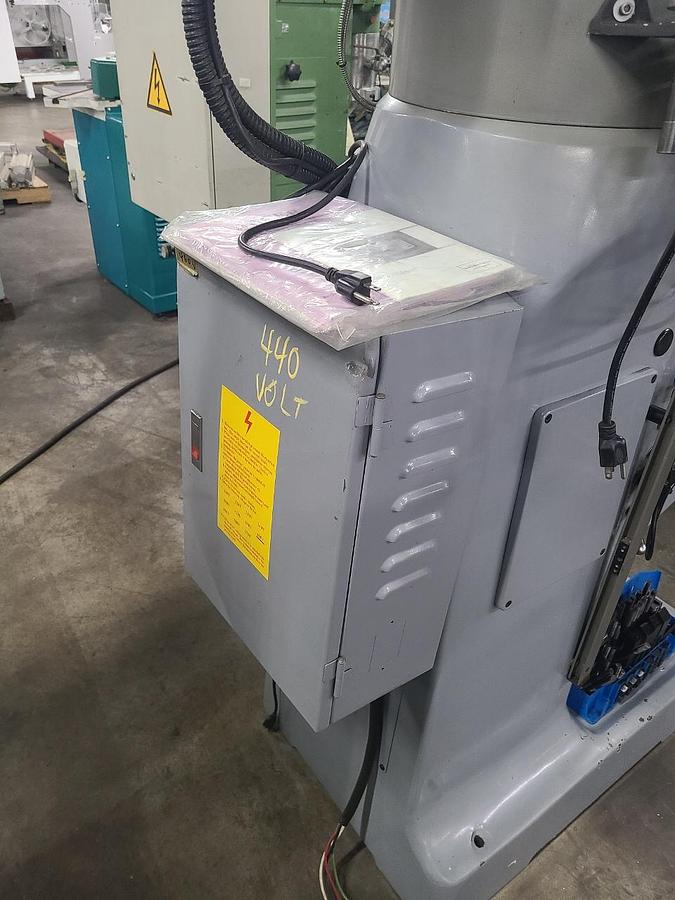

Wired for 3 Phase, 60 Cycle, 440 Volts

Overall Size: 70" LR x 60" FB x 95" High x 2,500 Lbs.
