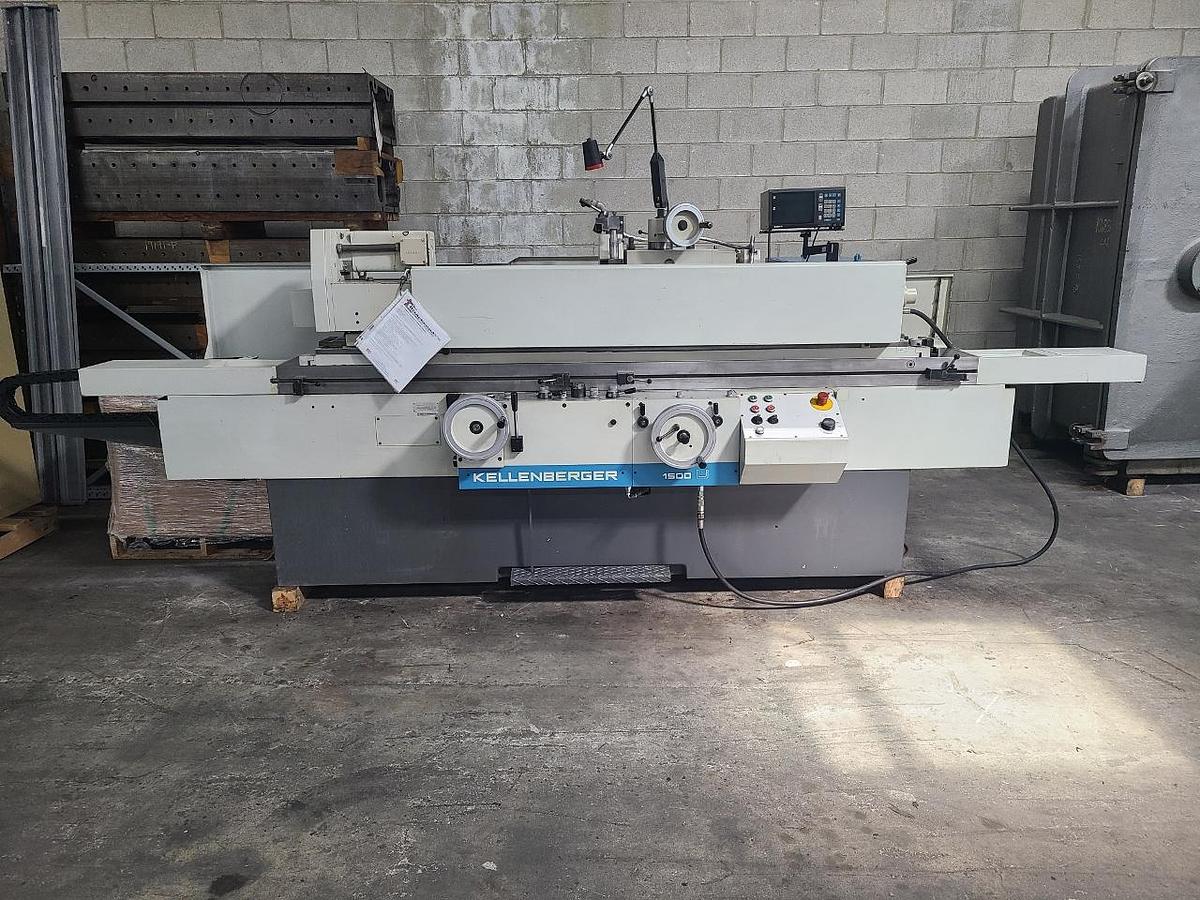

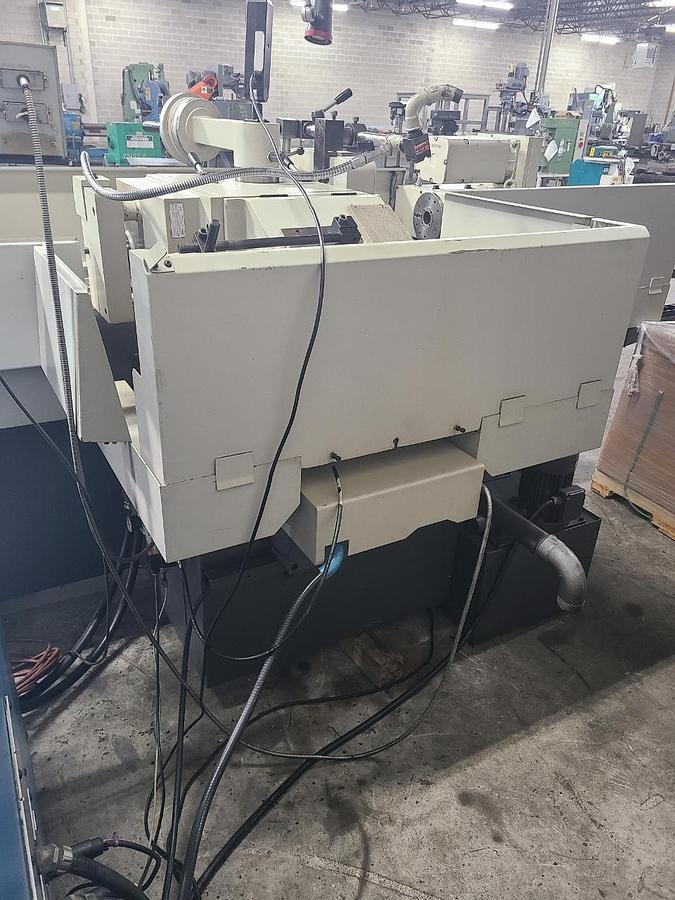

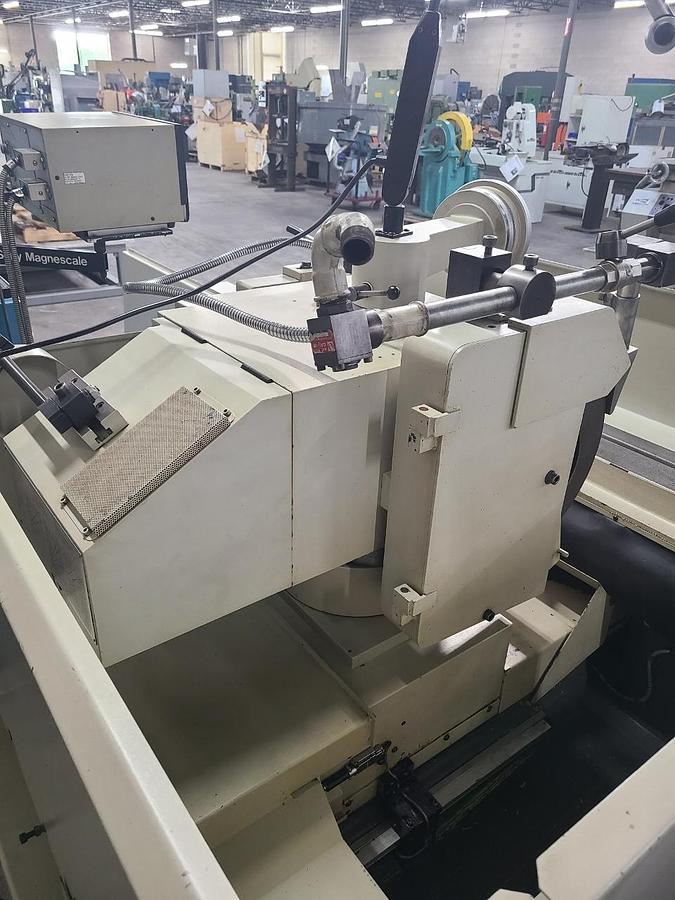

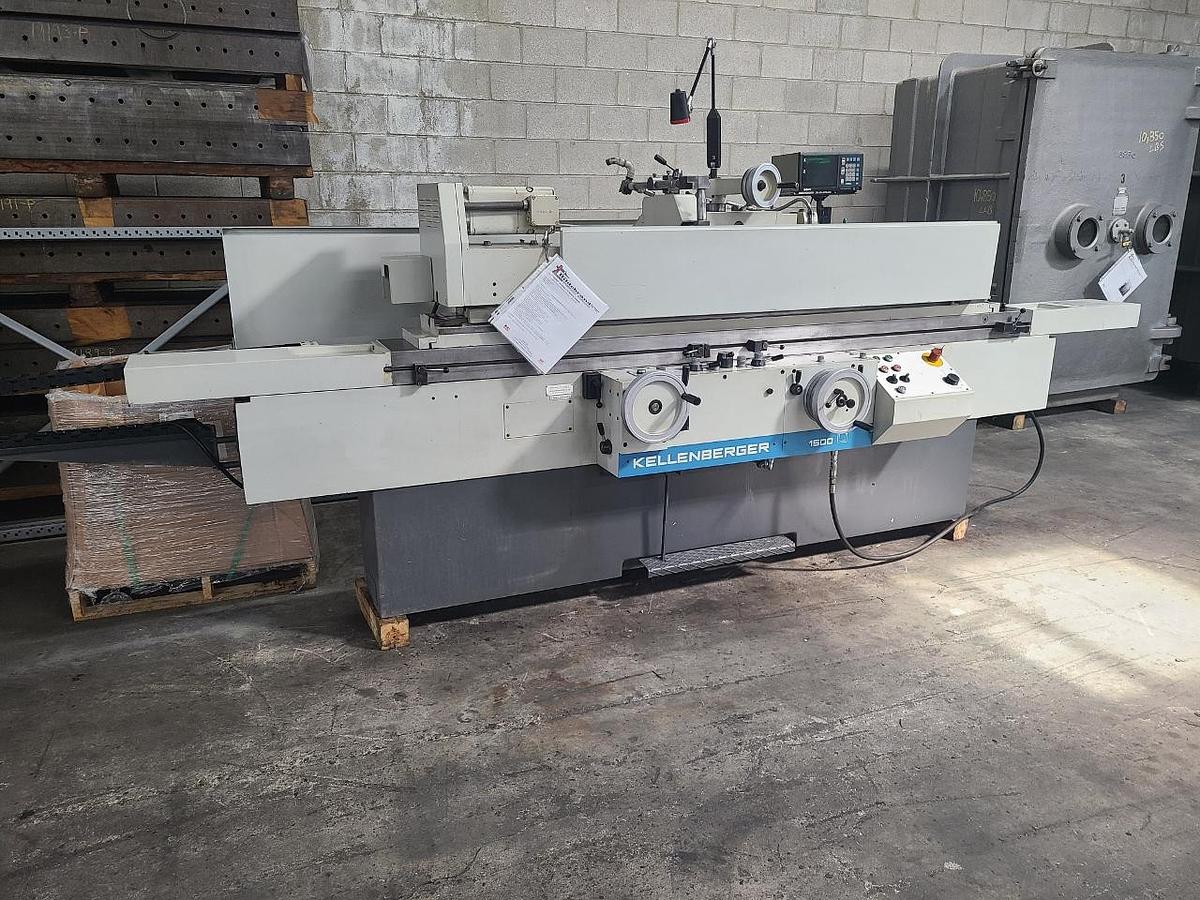

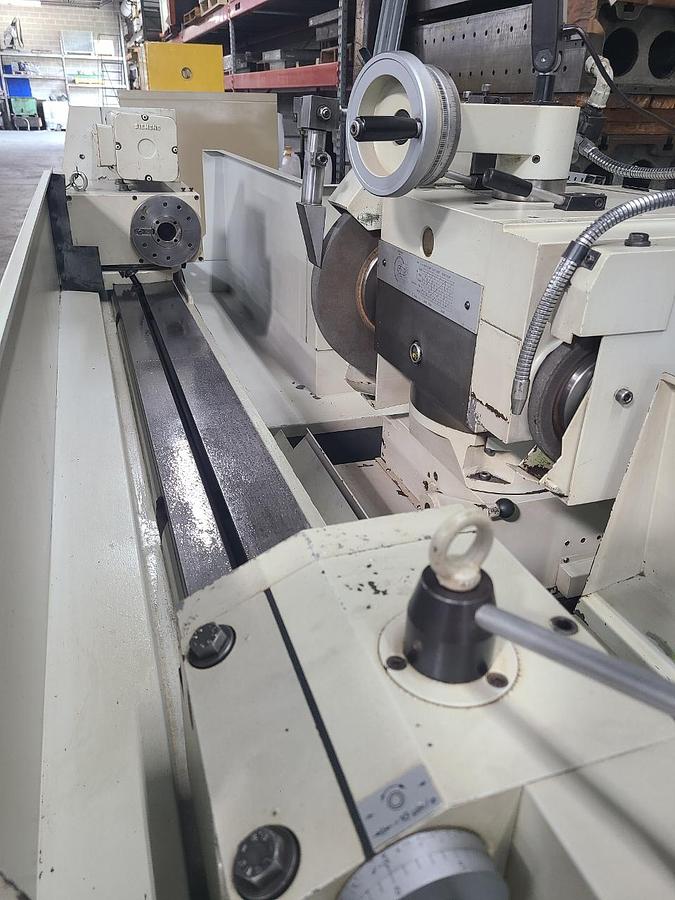

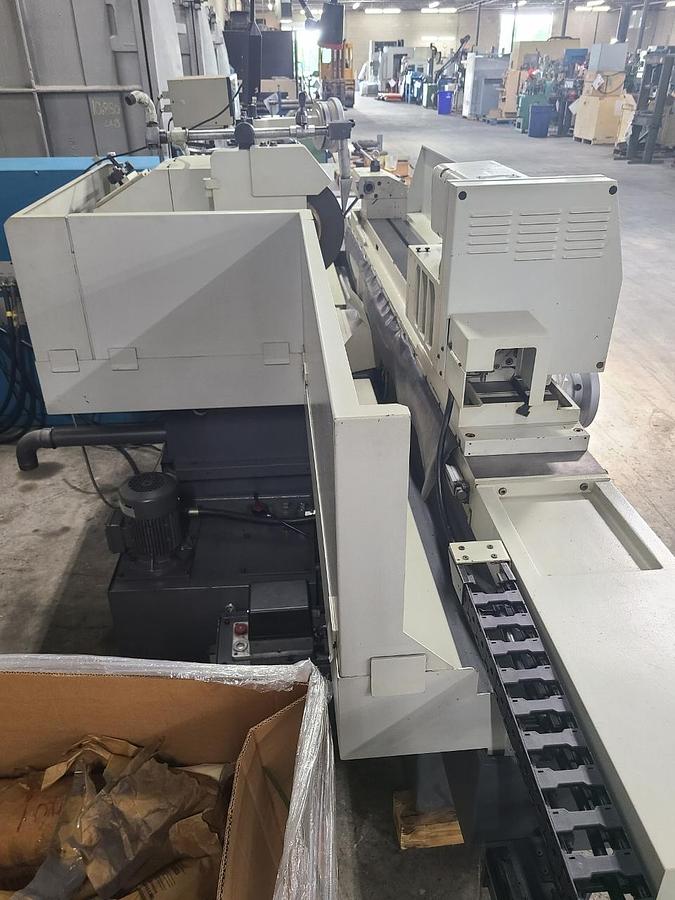

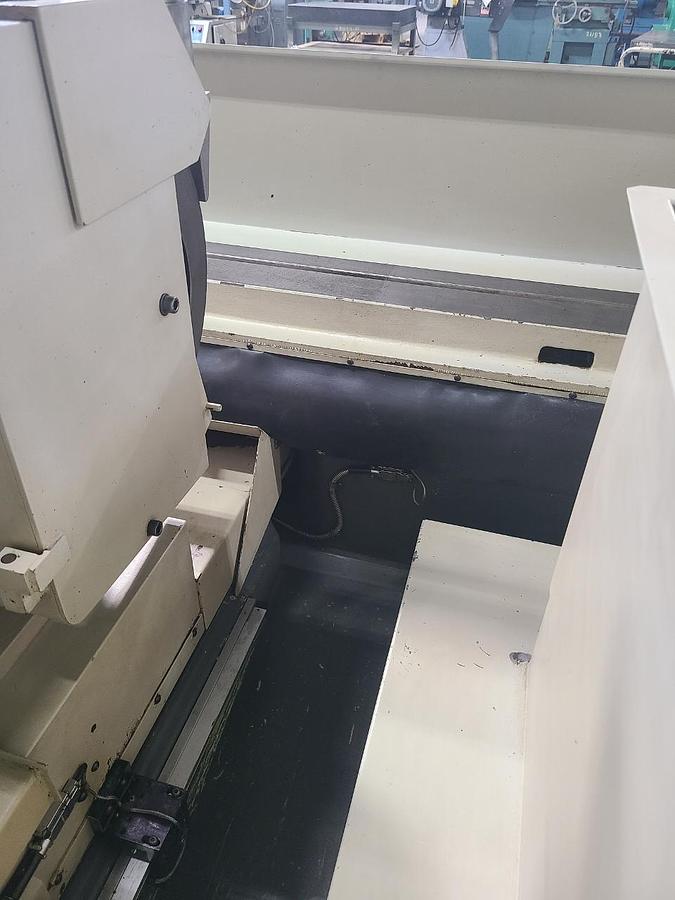

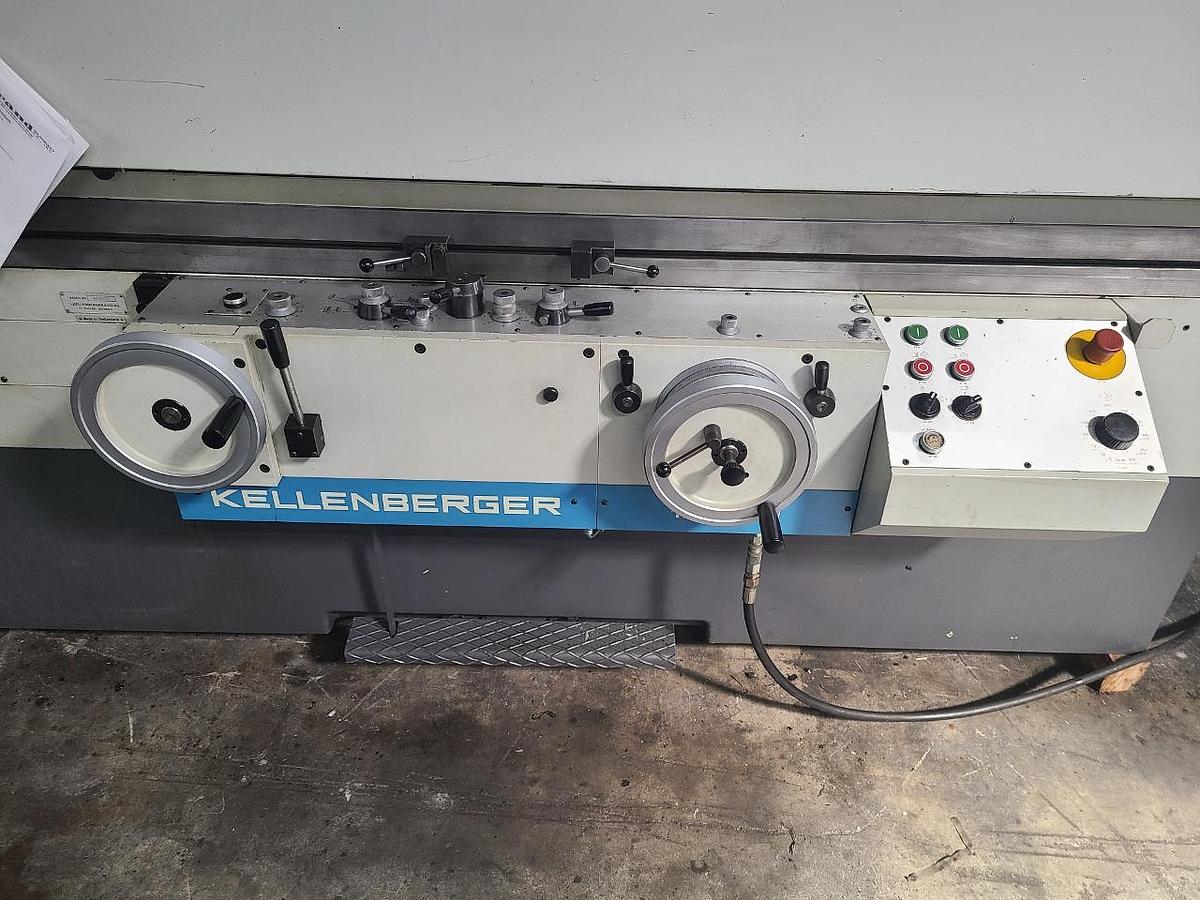

KELLENBERGER UNIVERSAL CYLINDRICAL GRINDER

KELLENBERGER UNIVERSAL CYLINDRICAL GRINDER

PRICE:  Loaded on Truck, Our Warehouse, York, PA …… $ POR

HMC Stock # 26015

Serial #: 613479

Model: 1500 U

Year: 1992

To Maintain Accuracy in the Information, the Specification Sheet is Done in Metric Units.

Height of Centers: 125 mm

Distance Between Centers: 1500 mm

Maximum Swing Over Table with a 400 mm Diameter Griding Wheel: 249 mm

Maximum Distance Between Centers (Traverse): 1650 mm

Vertical Lift of Grinding Wheel Spindle: 125 to 350 mm

Height Adjustment Traverse Per Rotation of Handwheel: 2 mm

Division of Dial on Handwheel: 5 um

Maximum Table Travel: 1750 mm

Swivel Range: 7 Degrees

Traverse Per Revolution of Handwheel, Coarse: 20 mm

Traverse Per Revolution of Handwheel, Fine: 2.5 mm

Table Speed, Hydraulic, Variable: .026 – 6 m/min

Minimum Movement Necessary to Reverse Table: 2.5 mm

Dwell of Reversal, Variable: 0 – 5 Seconds

Wheelslide Maximum Travel: 260 mm

Traverse Per Revolution of Handwheel, Coarse: 4 mm

Traverse Per Revolution of Handwheel, Fine: .5 mm

Rapid Advance / Withdrawal: 40 mm

Micro-Corrector of Infeed Per Division of Dial: 1 um/Diameter

Infeed, Hydraulic: 0 –.95 mm/Diameter

Traverse Grinding:

   Incremental Infeed Per Table Traverse at Either or Both Ends (Roughing): 1 – 30 um

   Incremental Infeed Per Table Reversal at Either or Both Ends (Finishing): 1 – 30 um

Grinding Wheel: 400 mm Diameter x 50 mm width x 127 mm hole

Wheelhead Spindle Speed: 2,200 RPM

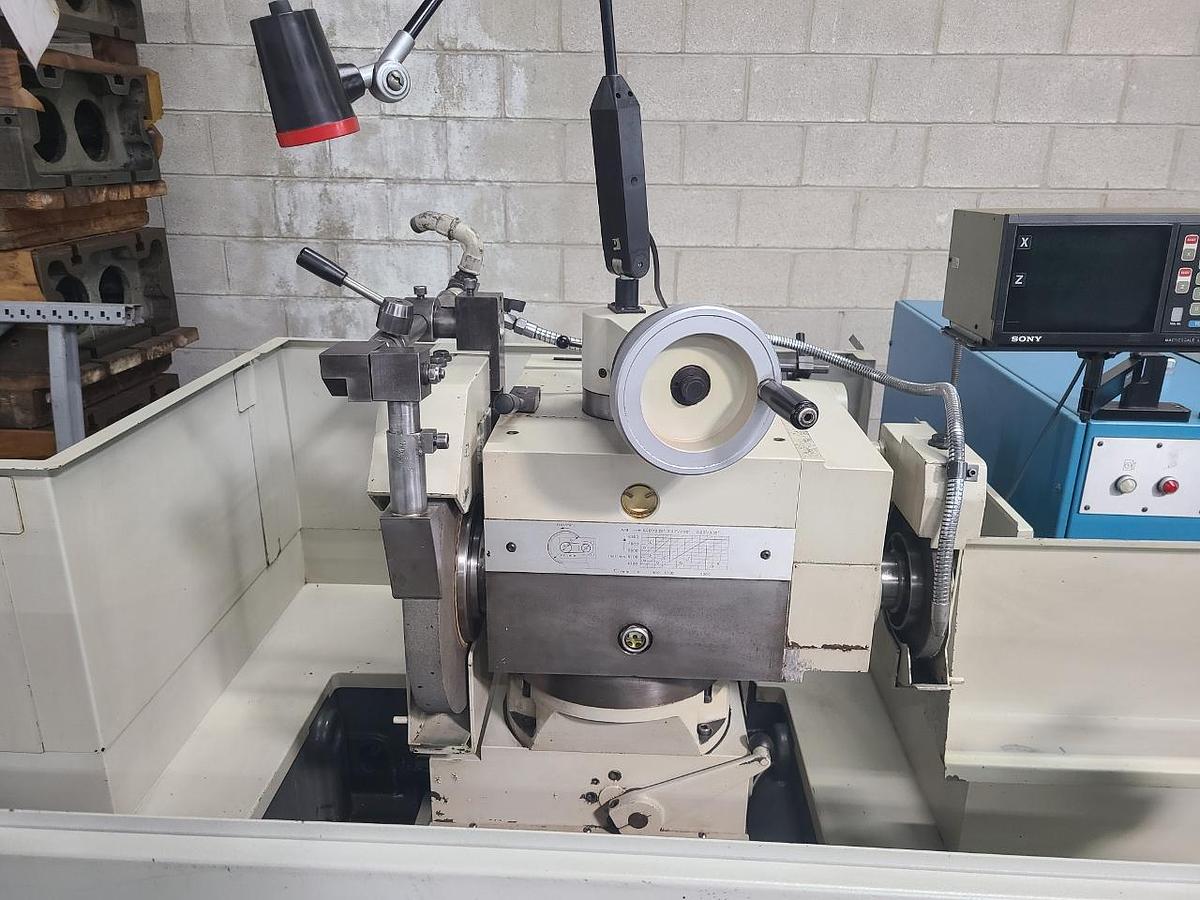

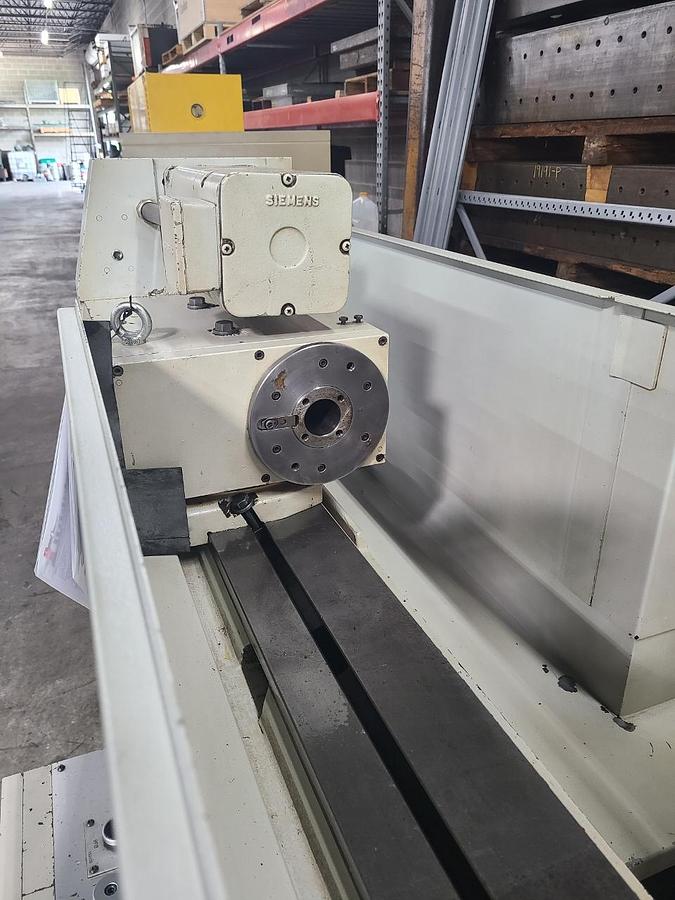

Workpiece Headstock:

   Swivel: +120 Degrees / -30 Degrees

   Speed, Variable: 5 – 500 RPM

   Taper: MK 5

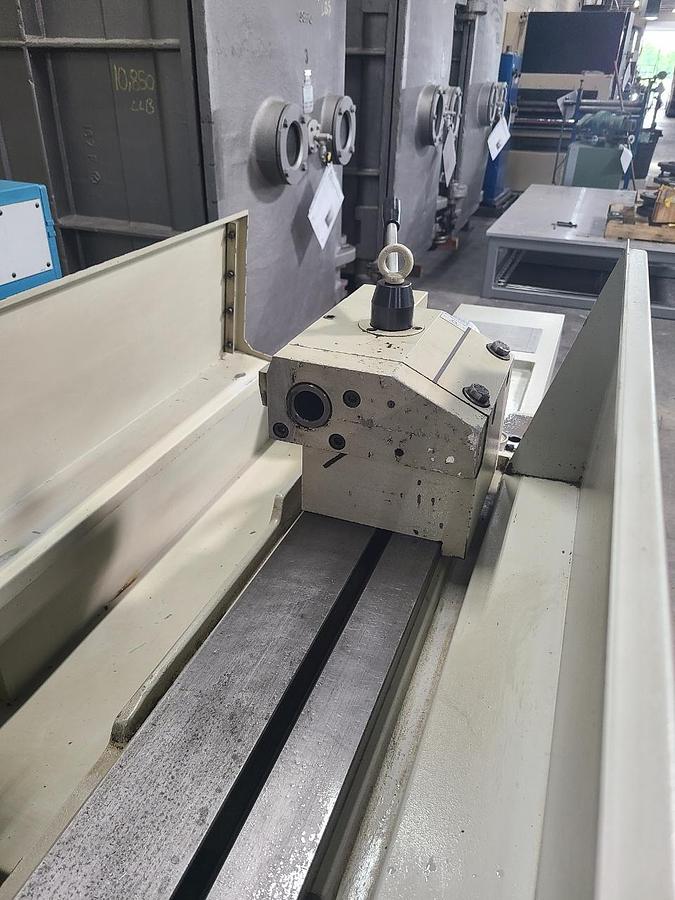

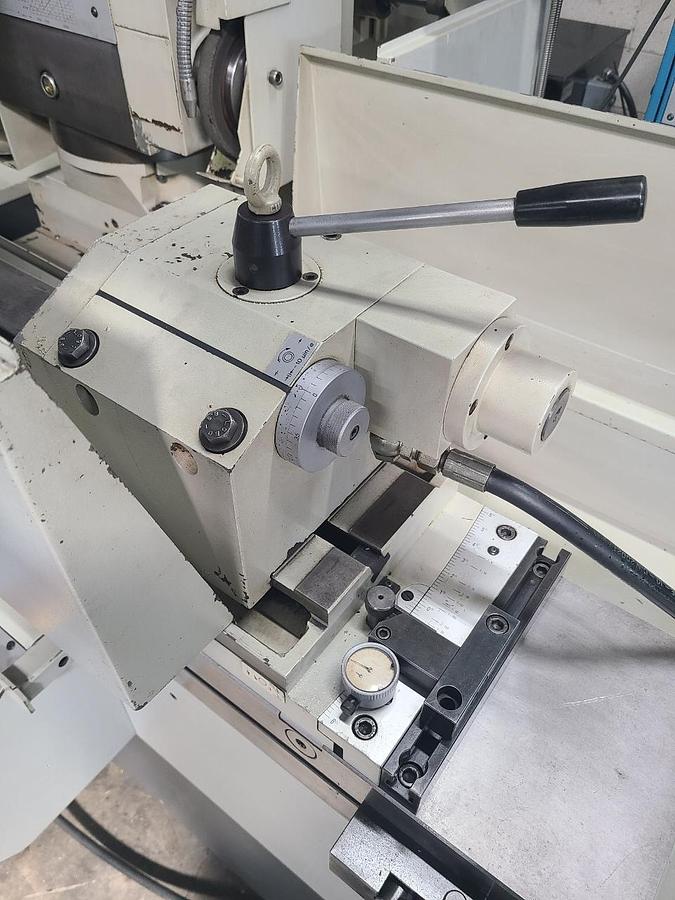

Tailstock:

   Taper: MK 4

   Quill Retraction: 30 mm

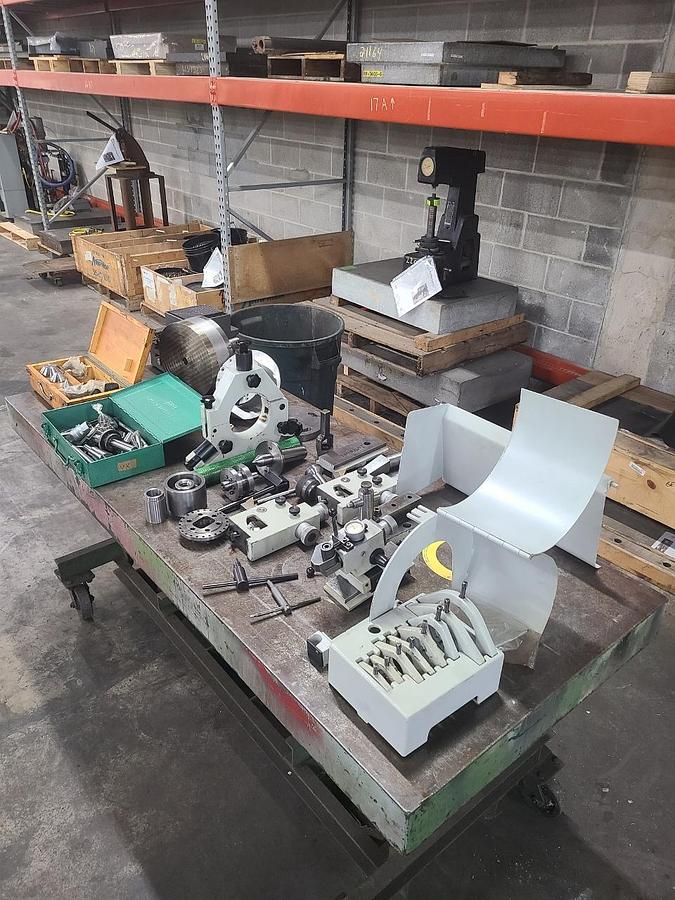

EQUIPPED WITH:

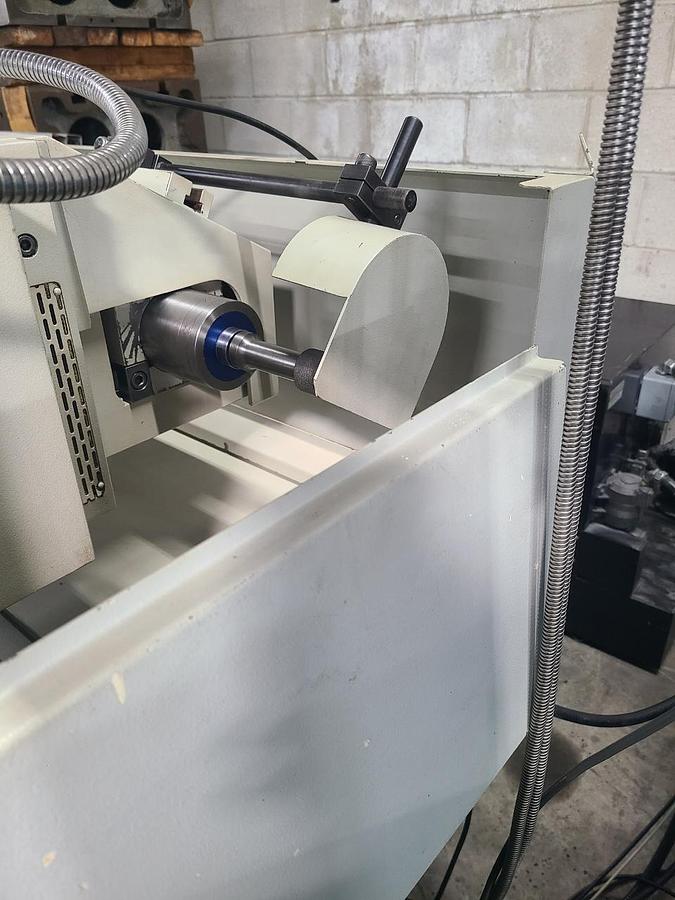

Internal Grinding Attachment (Spindle holder for Up to 80 mm Diameter)

Fortuna I.D. Spindle

Air Cushion for Wheelhead

Hydraulic Tailstock Quill Retraction (Foot Pedal)

Automatic Grinding Cycles

Plunge Grinding

Rapid Advance / Retract

Table Mounted Wheel Dresser

Spark Out Settings

Vibration Damping Bases (3)

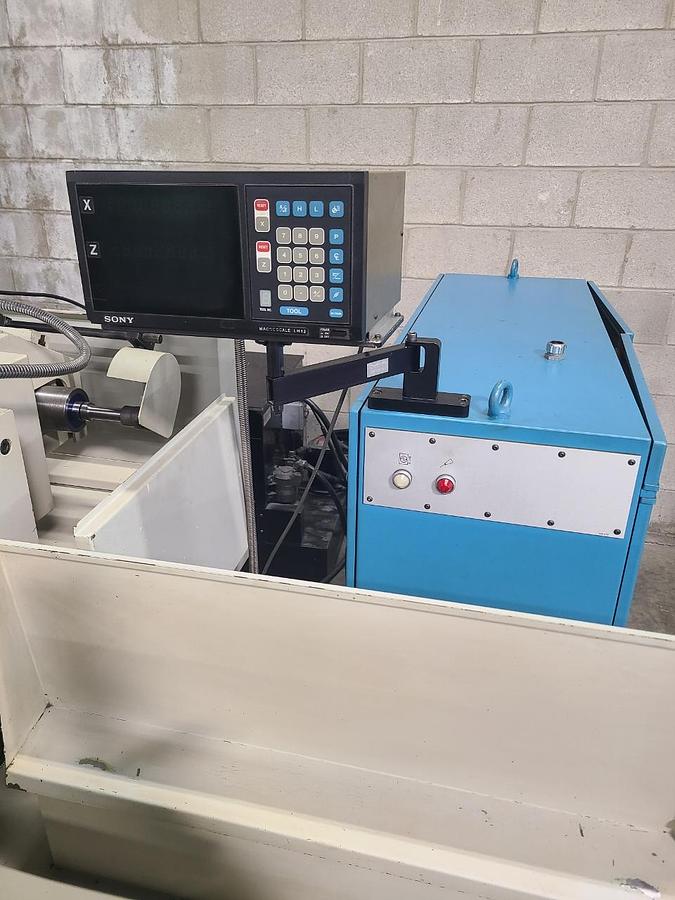

Two Axis Sony DRO .00001 Resolution

Swiveling Trueing Attachment for Internal Grinding

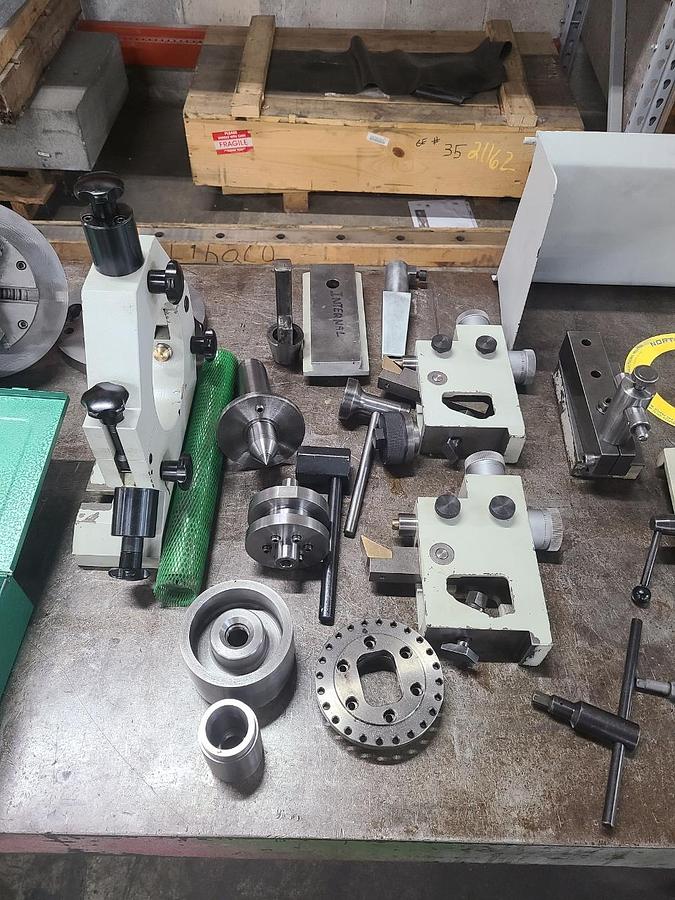

(2) Double Shoe Steady Rests

Opening Type 3 Jaw Steady Rest (3 – 120 mm)

Balancing Stand and Arbors

Assorted Wheel Hubs

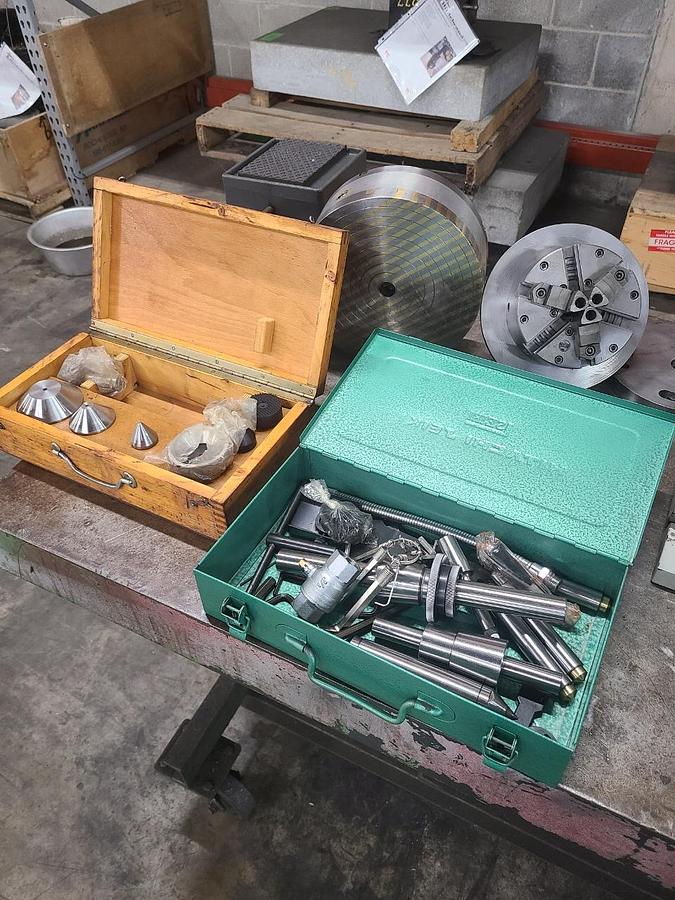

Assorted Centers

Wheel Puller

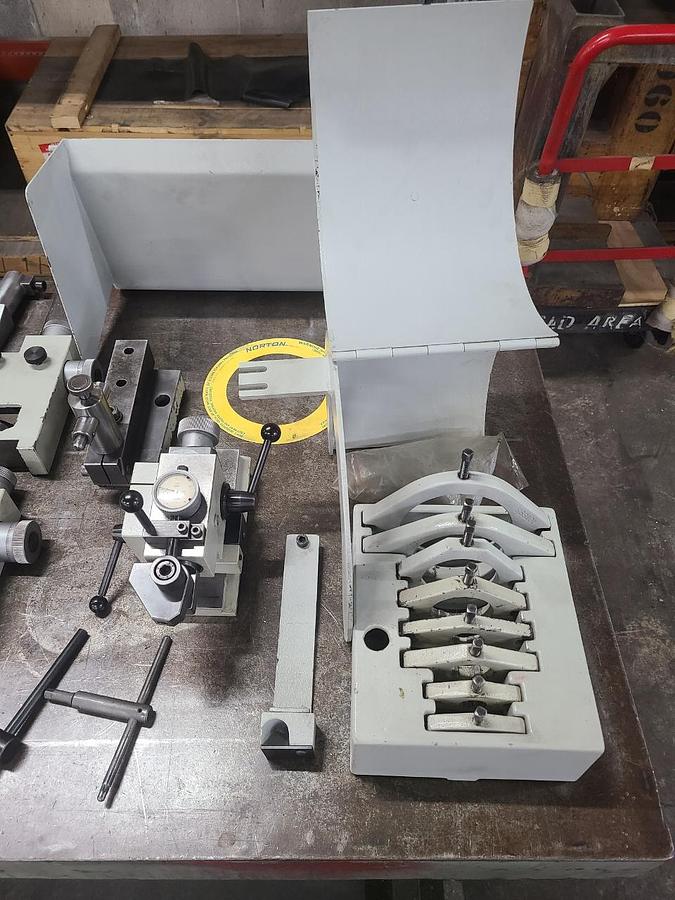

(8) Work Driving Dogs (Complete Set)

Buck 6 Jaw Chuck (3 Jaws Missing)

Round Permanent Magnetic Chuck

Micro Corrector for Tailstock

Dial Gauge Stop for Table Swivel

(2) Sets of Manuals

Coolant Piping

Splash Guarding

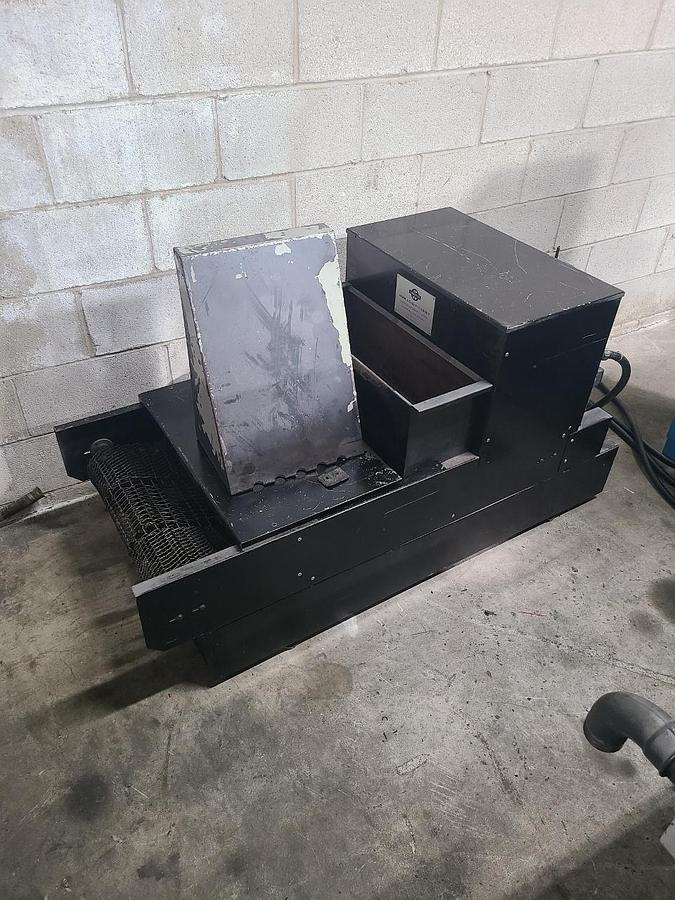

Darenth-Filter Paper Style Coolant Filter System

Work Light

*Single Owner Machine in Excellent Condition*

*These Grinders Were Made to be Used with Spacer Blocks that can go Under the Workhead, Grinding Head and Tailstock to Increase the Machine’s Swing. None of Those Additional Spacer Blocks Come with this Machine.*

Wired for 3 Phase 60 Cycle 460 Volts

(These are Provided in English Units not Though Manuals and Converted. Measured AS IS.)

Machine Size: 170" LR x 70" FB x 67" High x 6,500 Lbs.

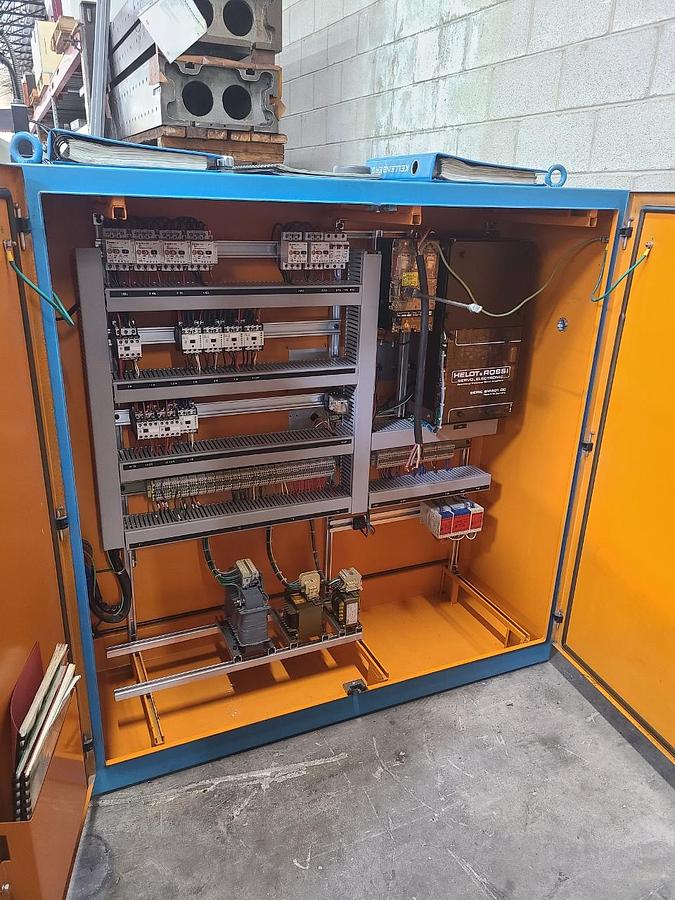

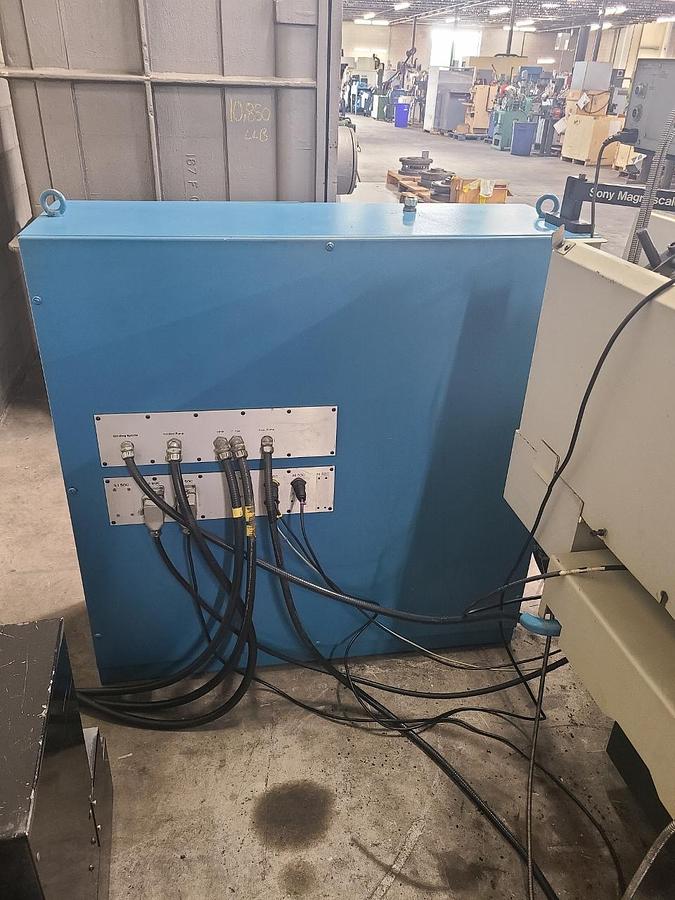

Control: 48" LR x 18" FB x 48" High

Coolant Filter Size: 60" LR x 25" FB x 30" High

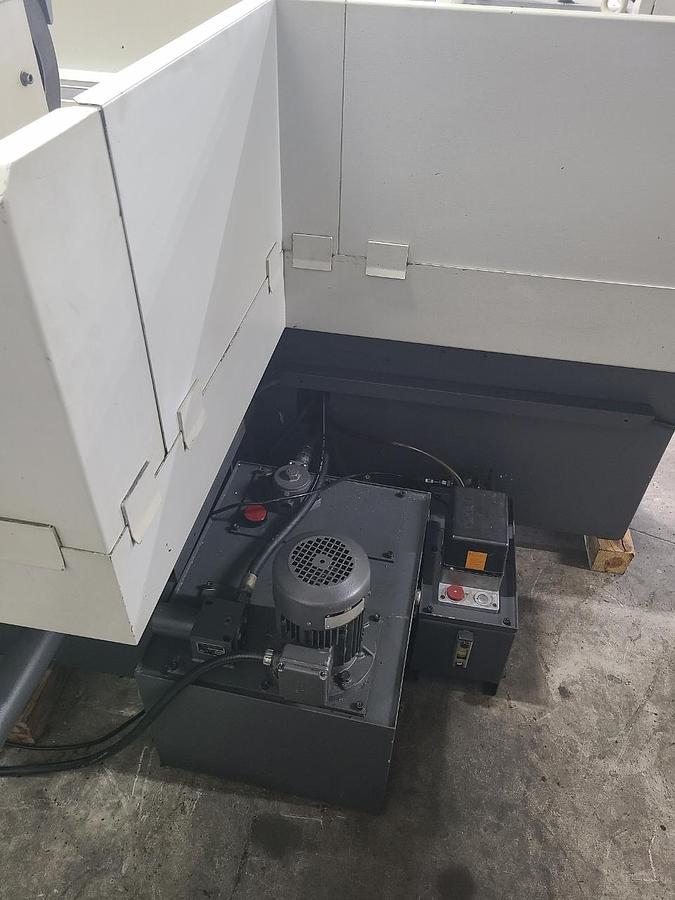

Hydraulic System Size: 30" LR x 18" FB x 24" High

Lubrication Tank Size: 20" LR x 9" FB x 18" High

Tooling Box: 31" LR x 31" FB x 31" High
