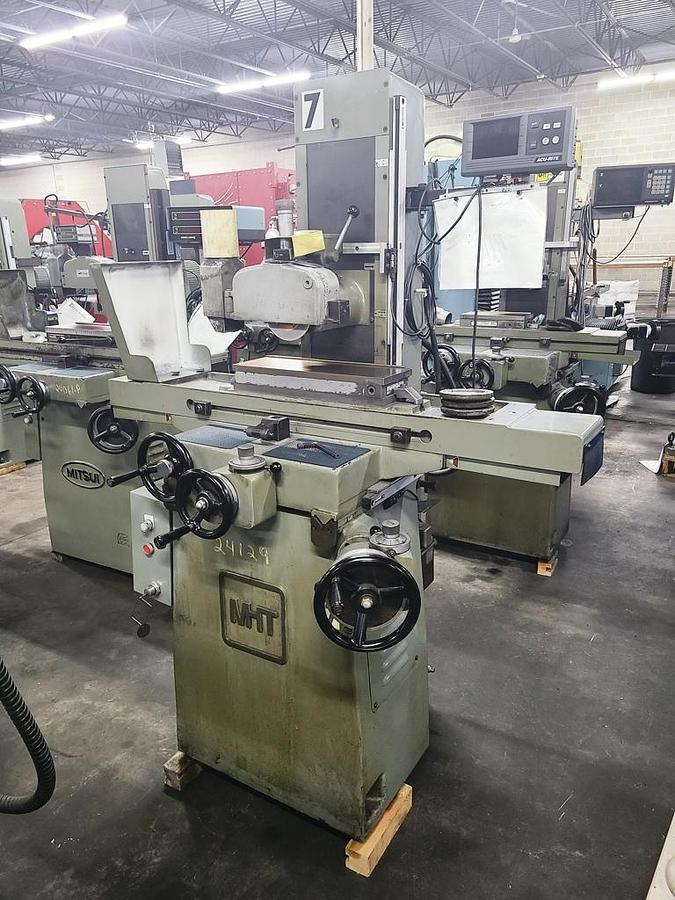

1987 Mitsui MSG-205MH

6" X 18" MITSUI HAND FEED SURFACE GRINDER

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $6,950.00

HMC Stock # 24129

Serial No.: 87082740

Model: MSG-205MH

Year: 1987

Dimension of Working Surface: 19" x 6-1/4"

Maximum Grinding Length and Width: 19" x 7"

Maximum Height from Table Surface to Grinding Wheel Spindle Center: 15"

Maximum Longitudinal Movement of Table: 20"

Maximum Cross Movement of Table: 8"

Table Movement per Hand Wheel Revolution: 4"

Hand Wheel for Vertical Feed:

  Per One Revolution: .05"

  Per One Division: .0001"

Hand Wheel for Cross Feed:

  Per One Revolution: .1"

  Per One Division: .001"

Height from Floor to Table Surface: 42"

Wheel Size: 7" Diameter x 1/2" Width x 1-1/4" Bore

EQUIPPED WITH:

6" x 18" Fine Pole Permanent Magnetic Chuck

Acurite Digital Read Out

Fine Feed on Y Axis, .00005" Increments

Fine Feed on Z Axis, .00005" Increments

One Shot Lube

1 KW Main Motor

Wired for 3 Phase, 60 Cycle, 220 Volts

Overall Size: 48" LR x 48" FB x 72" High x 1,300 Lbs.
